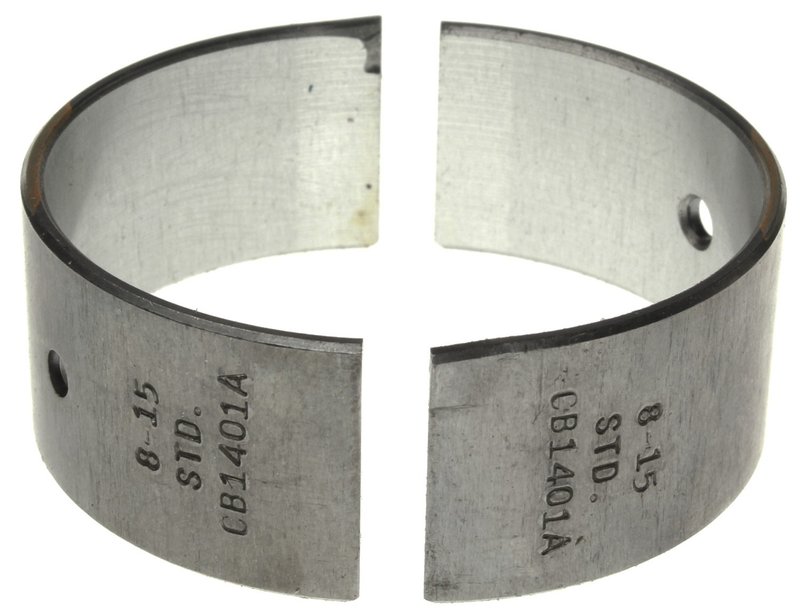

Clevite CB-1401A Engine Connecting Rod Bearing Pair
OE Quality 60-Day Returns
Clevite

Clevite CB-1401A Engine Connecting Rod Bearing Pair

Brand Clevite CB-1401A
Bearing Item Grade Oe replacement
Bearing Material Al-3
Bearing O.D. or Housing Bore (max.) 1.7724
Bearing O.D. or Housing Bore (min.) 1.7717
Bearing Series A
Max. Length 0.7130
Max. Wall 0.0587
Meets or Exceeds Original Equipment Manufacture Specifications Yes
Size Standard
Standard Shaft Diameter (max.) 1.6543
Standard Shaft Diameter (min.) 1.6535
Unit of Measure Inches
Vertical Oil Clearance (max.) 0.0027
Fits Chevrolet, Geo, Pontiac, and Suzuki · 60 vehicles

OE replacement. Standard-size engine bearing built to meet original equipment specifications.

Lead-free aluminum silicon. Bi-metal construction with improved journal surface conditioning.

Wear resistance. 60% more silicon than comparable replacements for added seizure resistance.

Cross-references King Engine Bearings CR307AM and Sealed Power 3-1140RA for the same application. See all 2.

$16.76Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $16.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Connecting Rod Bearing Pair options

OE Replacement Engine Bearing

Clevite CB-1401A is an OE replacement engine connecting rod bearing pair for a range of small-displacement applications. It is built for standard-size service and uses a bi-metal aluminum design with lead-free aluminum silicon for dependable journal support.

Key Features

  • OE replacement bearing grade for standard engine service
  • Bi-metal aluminum construction with AL-3 bearing material
  • Lead-free aluminum silicon composition
  • 60% more silicon than comparable competitive replacements
  • Engineered for improved journal surface conditioning and wear resistance
  • Meets or exceeds original equipment manufacturer specifications

Detailed Description

Clevite CB-1401A is a standard-size engine connecting rod bearing pair engineered for direct replacement use in compatible engines. The AL-3 bearing material and bi-metal aluminum construction are intended to provide stable support at the journal surface, while the lead-free aluminum silicon formulation adds seizure and wear resistance. This part cross-references King Engine Bearings CR307AM and Sealed Power 3-1140RA for the same application. For buyers servicing Chevrolet Metro, Suzuki Swift, or Geo Metro engines, CB-1401A offers an OE-style solution built around original equipment specifications. The Clevite CB-1401A part number is also useful when matching standard-size engine bearing applications across multiple platforms.

Common Issues This Part May Address

  • Excessive bearing wear at the connecting rod journal
  • Loss of proper oil clearance in standard-size engine service
  • Surface damage from seizure or poor lubrication conditions
  • Need for OE replacement bearings during engine rebuild work
  • Fitment matching for engines requiring A-series aluminum bearings

Installation Notes and Tips

Verify bearing size, shaft diameter, and housing bore before installation. Confirm the engine uses the A series aluminum bearing specification and standard sizing listed for CB-1401A. Clean all mating surfaces thoroughly and follow the engine builder’s clearance and lubrication procedures during assembly. Fitment includes Chevrolet Metro, Suzuki Swift, Pontiac Firefly, Geo Metro, Suzuki Samurai, Suzuki Sidekick, Chevrolet Sprint, Suzuki Forsa, Suzuki SA310, and Suzuki SJ410 applications as listed.

Quality Assurance

Clevite states that this bearing meets or exceeds original equipment manufacturer specifications. The CB-1401A part number reflects a standard-size OE replacement engineered for durability and dependable service.

This part fits 60 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2001ChevroletMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
2001SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
2000ChevroletMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
2000ChevroletMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
2000SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1999ChevroletMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
1999ChevroletMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1999SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1998ChevroletMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
1998ChevroletMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1998PontiacFirefly1.3LL4OE Replacement; A Series (Aluminum); Standard
1998SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1997GeoMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
1997GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1997PontiacFirefly1.3LL4OE Replacement; A Series (Aluminum); Standard
1997SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1996GeoMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
1996GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1996PontiacFirefly1.3LL4OE Replacement; A Series (Aluminum); Standard
1996SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1995GeoMetro1.3LL4OE Replacement; A Series (Aluminum); Standard
1995GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1995PontiacFirefly1.3LL4OE Replacement; A Series (Aluminum); Standard
1995SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1995SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1994GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1994PontiacFirefly1.3LL4OE Replacement; A Series (Aluminum); Standard
1994SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1994SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1993GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1993SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1993SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1992GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1992SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1992SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1991GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1991SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1991SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1990GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1990SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1990SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1989GeoMetro1.0LL3OE Replacement; A Series (Aluminum); Standard
1989SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1989SuzukiSidekick1.3LL4OE Replacement; A Series (Aluminum); Standard
1989SuzukiSwift1.3LL4OE Replacement; A Series (Aluminum); Standard
1988ChevroletSprint1.0LL3OE Replacement; A Series (Aluminum); Standard
1988SuzukiForsa1.0LL3OE Replacement; A Series (Aluminum); Standard
1988SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1987ChevroletSprint1.0LL3OE Replacement; A Series (Aluminum); Standard
1987SuzukiForsa1.0LL3OE Replacement; A Series (Aluminum); Standard
1987SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1986ChevroletSprint1.0LL3OE Replacement; A Series (Aluminum); Standard
1986SuzukiForsa1.0LL3OE Replacement; A Series (Aluminum); Standard
1986SuzukiSamurai1.3LL4OE Replacement; A Series (Aluminum); Standard
1985ChevroletSprint1.0LL3OE Replacement; A Series (Aluminum); Standard
1985SuzukiForsa1.0LL3OE Replacement; A Series (Aluminum); Standard
1985SuzukiSA3101.0LL3OE Replacement; A Series (Aluminum); Standard
1982SuzukiSJ4101.0LL3OE Replacement; A Series (Aluminum); Standard
1981SuzukiSJ4101.0LL3OE Replacement; A Series (Aluminum); Standard
1980SuzukiSJ4101.0LL3OE Replacement; A Series (Aluminum); Standard
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
King Engine Bearings — CR307AMSealed Power — 3-1140RA
