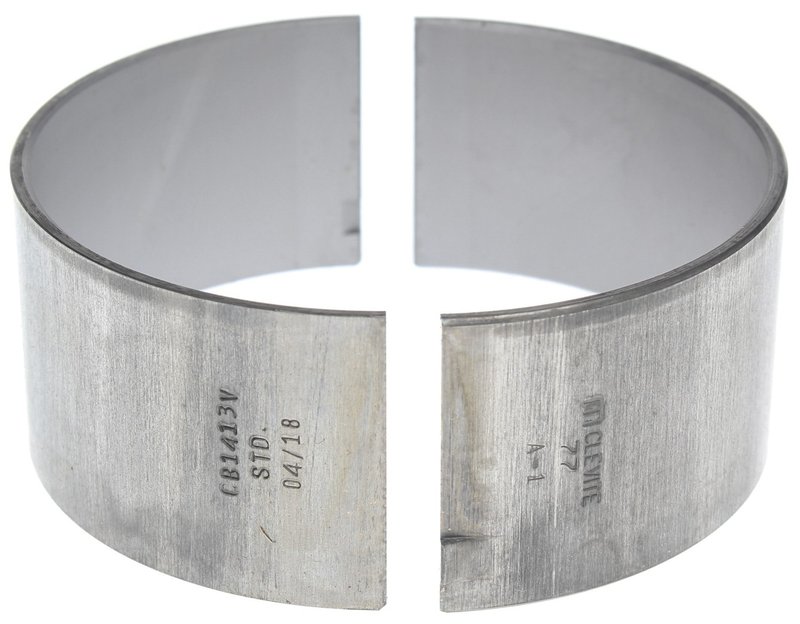

Clevite CB-1413V Engine Connecting Rod Bearing Pair

Clevite CB-1413V Connecting Rod Bearing Pair

Clevite CB-1413V is a high performance standard-size engine connecting rod bearing pair for select Dodge Ram 2500, Ram 3500, D250, D350, W250, and W350 applications. Built for engines that need consistent oil clearance and OE-level dimensional control, this V-Series bearing uses a lead-indium overlay for improved conformability under load.

Key Features

• High performance bearing item grade for demanding engine service
• V-Series tri-metal construction with lead-indium overlay
• Standard size for engines using factory shaft and housing dimensions
• Meets or exceeds original equipment manufacturer specifications
• Standard shaft diameter range: 2.7160 to 2.7170
• Bearing housing bore range: 2.8735 to 2.8735
• Maximum wall thickness: 0.0775
• Maximum vertical oil clearance: 0.0055

Detailed Description

The Clevite CB-1413V is engineered for builders and repair jobs that require a precise connecting rod bearing fit in compatible Dodge diesel and heavy-duty truck engines. The lead-indium overlay improves conformability compared with lead-tin-copper overlay designs, helping the bearing seat properly against the journal surface while maintaining the dimensional consistency expected from a standard-size replacement. This part number, CB-1413V, is part of Clevite’s V-Series and is intended for applications that call for OE-spec performance in 1989-1993 Dodge D250, D350, W250, and W350, as well as 1994-2002 Dodge Ram 2500 and Ram 3500. This part cross-references Federal-Mogul/Speed-Pro (e.g., CB-1413V) for the same application.

What It Helps Address

• Rod bearing wear from age, mileage, or oil contamination
• Excessive bearing clearance that can affect oil pressure and engine noise
• Journal-to-bearing fit issues during engine rebuilds
• Loss of conformability in high-load diesel service
• Need for a standard-size replacement during stock-spec repairs

Installation Notes and Tips

Verify crankshaft journal diameter, housing bore, and oil clearance before assembly. The CB-1413V is a standard-size bearing, so it should be matched to factory-spec dimensions and measured during installation. Clean all mating surfaces thoroughly, use proper assembly lubricant, and confirm bearing clearance with precision measuring tools before final engine start-up.

Quality Assurance

Clevite states that this V-Series bearing meets or exceeds original equipment manufacturer specifications. The tri-metal design and lead-indium overlay are selected to balance conformability and wear performance for engine rebuild and maintenance work.
