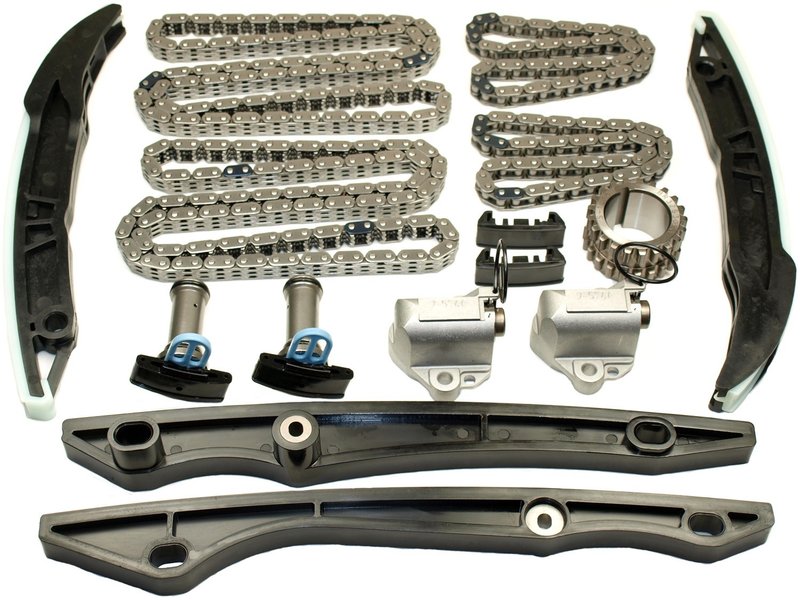

Cloyes 9-0510S Engine Timing Chain Kit - Front

Overview of Cloyes Engine Timing Chain Kit 9-0510S

The Cloyes 9-0510S engine timing chain kit is designed for Ford F-150 and Mustang models, providing reliable timing chain replacement with essential components included. This kit features a steel inverted tooth, single roller chain engineered for durability and precise timing performance.

• Compatible with Ford F-150 and Mustang vehicles
• Includes steel inverted tooth, single roller timing chain
• Chain length: 20.125 inches (511.18 mm)
• Chain width: 0.492 inches (12.51 mm)
• Comes with nylon chain guides and tensioner
• Standard replacement grade for reliable engine timing
• Crankshaft sprocket made of steel for strength
• Link quantity: 128 links with 21-tooth sprocket

Detailed Product Description

The Cloyes 9-0510S timing chain kit is engineered to meet the exact specifications required for Ford F-150 and Mustang engines. The timing chain is constructed from durable steel with an inverted tooth, single roller design, ensuring consistent engagement and reduced wear. Measuring 20.125 inches in length and 0.492 inches in width, the chain maintains precise timing control critical for engine performance.

This kit includes nylon chain guides and a tensioner to maintain proper chain tension and alignment, reducing the risk of chain slack or skipping. The crankshaft sprocket is also made from steel, providing robust durability under high-stress conditions. The kit is a standard replacement grade, suitable for restoring factory timing chain function without modification.

Common Applications and Issues Addressed

• Replacement of worn or stretched timing chains in Ford F-150 and Mustang engines
• Elimination of timing chain noise or rattling
• Correction of timing chain slack causing engine misfires or rough idling
• Prevention of potential engine damage due to timing chain failure
• Restoration of accurate camshaft and crankshaft timing

Installation Notes and Tips

• Ensure engine is cool and battery disconnected before installation
• Verify compatibility with specific Ford F-150 or Mustang engine year and model
• Use proper tools to remove old timing chain and components carefully
• Inspect sprockets and guides for wear before installing new parts
• Follow manufacturer torque specifications for tensioner and sprocket bolts
• Rotate engine manually after installation to confirm proper timing alignment

Quality Assurance and Warranty

The Cloyes 9-0510S timing chain kit is manufactured to meet OEM standards for fit and function. Each component undergoes quality checks to ensure durability and performance. This kit is backed by Cloyes' standard replacement grade warranty, providing confidence in the product's reliability for Ford F-150 and Mustang engine timing applications.
