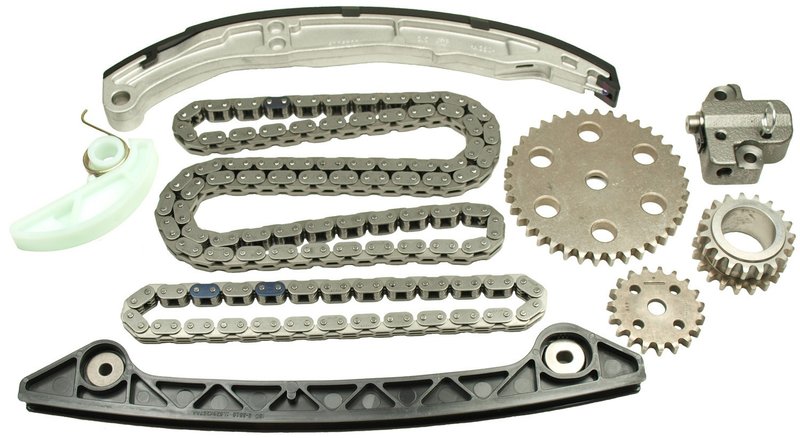

Cloyes 9-0705SB Engine Timing Chain Kit - Front

Reliable Timing Chain Kit for Ford and Lincoln Vehicles

The Cloyes Timing Chain Kit 9-0705SB is engineered to provide precise timing and durability for select Ford and Lincoln models. Designed to meet standard replacement specifications, this kit ensures consistent engine performance and longevity.

• Includes inverted tooth steel timing chain with 138 links
• Chain length of 21.5 inches (546.1 mm) and width of 0.46 inches (11.68 mm)
• Metal camshaft and crankshaft sprockets with 19 and 38 teeth respectively
• Comes with chain guides and tensioner for proper chain alignment and tension
• Chain pitch of 0.315 inches (8 mm) for accurate timing engagement

About the Cloyes Timing Chain Kit Product Line

The Cloyes Timing Chain Kit line focuses on providing standard replacement timing components that maintain factory specifications. This kit includes all necessary parts such as the inverted tooth steel chain, metal sprockets, chain guides, and tensioner to ensure proper valve train operation. The use of aluminum and nylon materials in guides helps reduce wear and noise, supporting reliable engine timing for Ford Escape, Fusion, MKZ, Ranger, and Transit Connect models.

Technical Details and Features

This engine timing chain kit features a steel inverted tooth chain designed for durability and precise timing control. The chain length measures 21.5 inches (546.1 mm) with a width of 0.46 inches (11.68 mm), providing a robust fit for the specified engines. Both camshaft and crankshaft sprockets are constructed from metal, with 19 and 38 teeth respectively, ensuring accurate timing synchronization. The kit includes chain guides made from aluminum and nylon materials to reduce friction and wear, along with a tensioner to maintain optimal chain tension. The chain pitch is 0.315 inches (8 mm), matching OEM specifications for smooth operation.

Compatible Vehicles and Applications

• Ford Escape
• Ford Fusion
• Lincoln MKZ
• Ford Ranger
• Ford Transit Connect

This timing chain kit is designed specifically for these Ford and Lincoln models, providing a direct replacement for worn or damaged timing components to restore engine timing accuracy and performance.

Common Issues Addressed by This Timing Chain Kit

• Eliminates timing chain stretch and slack that cause engine misfires
• Replaces worn sprockets to prevent timing chain skipping
• Restores proper chain tension to reduce noise and vibration
• Prevents premature wear of valve train components
• Addresses timing chain guide wear and failure

Installation Notes and Tips

Installation of the Cloyes Timing Chain Kit 9-0705SB requires careful alignment of the inverted tooth chain with the camshaft and crankshaft sprockets. Ensure the tensioner and chain guides are properly seated to maintain correct chain tension and prevent premature wear. It is recommended to follow the vehicle manufacturer’s service manual for torque specifications and timing procedures. This kit is not adjustable for keyway or timing advance, so precise installation is critical.

Quality Assurance and Warranty

The Cloyes Timing Chain Kit 9-0705SB is manufactured to meet or exceed OEM standards for durability and fitment. All components undergo rigorous quality control to ensure reliable engine timing performance. This kit is classified as a standard replacement grade part, designed to restore factory timing chain function. Warranty coverage details should be confirmed with the parts distributor or vehicle manufacturer.
