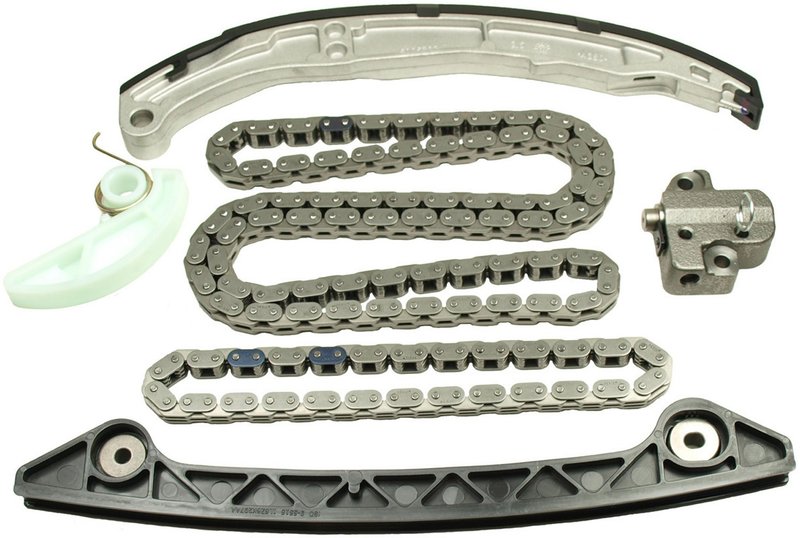

Cloyes 9-0705SBX Engine Timing Chain Kit

Overview of Cloyes Timing Chain Kit 9-0705SBX

The Cloyes Timing Chain Kit 9-0705SBX is engineered for reliable valve train performance in select Ford and Lincoln vehicles. Designed with durable materials and precise specifications, this kit supports proper engine timing and smooth operation.

• Includes steel inverted tooth timing chain with 138 links
• Chain length of 21.5 inches (546.1 mm) and width of 0.46 inches (11.68 mm)
• Constructed with aluminum and nylon components for chain guides
• Comes with chain guides and tensioner for complete timing system replacement
• Standard replacement grade for dependable engine timing

Detailed Product Features and Specifications

This Cloyes Timing Chain Kit features a steel inverted tooth chain designed to maintain precise timing without keyway adjustment. The chain pitch measures 0.315 inches (8 mm), ensuring compatibility with the included tensioner and guides made from aluminum and nylon materials. The kit’s chain length of 21.5 inches (546.1 mm) and width of 0.46 inches (11.68 mm) are tailored for specific engine configurations. The kit does not allow for maximum advance or retard adjustments at the camshaft or crankshaft, reflecting its role as a standard replacement component. With 138 links, the chain provides the necessary length for proper valve timing in compatible vehicles.

About the Cloyes Timing Chain Kit Product Line

The Cloyes Timing Chain Kit product line focuses on delivering complete timing chain solutions that include all necessary components such as chain guides and tensioners. This ensures a comprehensive replacement that maintains engine timing integrity. The 9-0705SBX kit exemplifies this approach by combining durable materials and precise engineering to meet the demands of Ford and Lincoln engines requiring standard replacement timing components.

Compatible Vehicles and Common Applications

• Ford Escape
• Ford Fusion
• Lincoln MKZ
• Ford Ranger
• Ford Transit Connect

This timing chain kit is designed specifically for these models, providing a direct replacement for worn or damaged timing components to restore engine timing accuracy and performance.

Installation Notes and Tips

• Ensure engine is cool and battery disconnected before installation
• Follow manufacturer torque specifications for tensioner and guide bolts
• Verify timing marks alignment during installation to prevent engine damage
• Replace all components in the kit together to maintain system integrity
• Consult vehicle service manual for detailed installation procedures

Quality Assurance and Warranty

The Cloyes Timing Chain Kit 9-0705SBX is manufactured to meet OEM standards for fit and function. It includes chain guides and tensioner to provide a complete timing system replacement. While specific warranty details are not provided, Cloyes products typically adhere to industry quality controls to ensure durability and reliability in engine timing applications.
