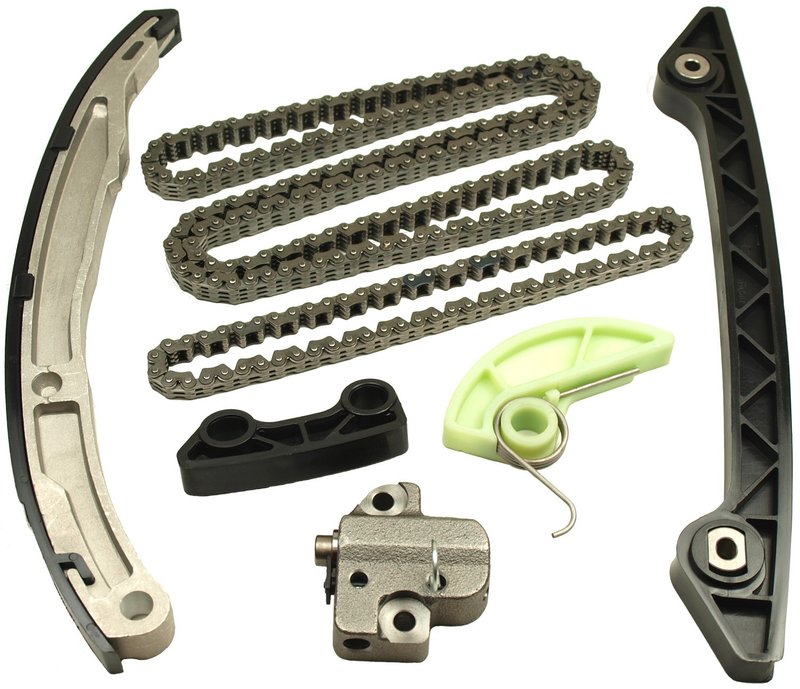

Cloyes 9-0715SX Engine Timing Chain Kit

Reliable Engine Timing Chain Kit for Mazda 3, 5, and 6

The Cloyes 9-0715SX engine timing chain kit is designed specifically for Mazda 3, 5, and 6 models. Engineered with durable steel and precision components, this kit ensures accurate valve timing and smooth engine performance.

• Includes inverted tooth steel timing chain with 174 links
• Chain length of 21.75 inches (552.45 mm) and width of 0.47 inches (11.94 mm)
• Comes with aluminum and nylon chain guides for reliable tension and reduced wear
• Includes a tensioner to maintain proper chain tension
• Standard replacement grade for direct fit and function

Durable Components and Precise Engineering

The Cloyes 9-0715SX timing chain kit features a steel inverted tooth chain designed to provide consistent and accurate timing for Mazda 3, 5, and 6 engines. The chain’s 0.25 inch (6.35 mm) pitch and 174-link count ensure proper engagement with the camshaft and crankshaft sprockets. Aluminum and nylon chain guides included in the kit help reduce friction and wear, extending the life of the timing system. The included tensioner maintains optimal chain tension, preventing slack and potential timing issues. This kit is a standard replacement part, engineered to meet OEM specifications without adjustable keyways or timing advance features.

Compatible Mazda Models and Applications

This engine timing chain kit is compatible with the following Mazda vehicles:

• Mazda 3
• Mazda 5
• Mazda 6

It is designed to replace worn or damaged timing chains and related components, restoring proper valve train operation and engine timing accuracy.

Common Issues Addressed by This Timing Chain Kit

• Eliminates timing chain stretch that causes engine misfires or rough idling
• Replaces worn chain guides to prevent chain slapping and noise
• Resolves tensioner failure that can lead to chain slack and timing errors
• Prevents potential engine damage from improper valve timing
• Restores smooth engine operation and performance

Installation Notes and Tips

• Ensure engine is cool and battery disconnected before installation
• Follow Mazda factory service manual for timing chain alignment and torque specifications
• Inspect sprockets and replace if worn to ensure proper chain engagement
• Use proper tools to install tensioner and guides securely
• Double-check timing marks before reassembling engine components

Quality Assurance and Warranty

The Cloyes 9-0715SX timing chain kit is manufactured to meet OEM standards for fit, form, and function. Each component undergoes quality control inspections to ensure durability and reliability. This kit is backed by Cloyes’ standard replacement part warranty, providing coverage against defects in materials and workmanship under normal use.
