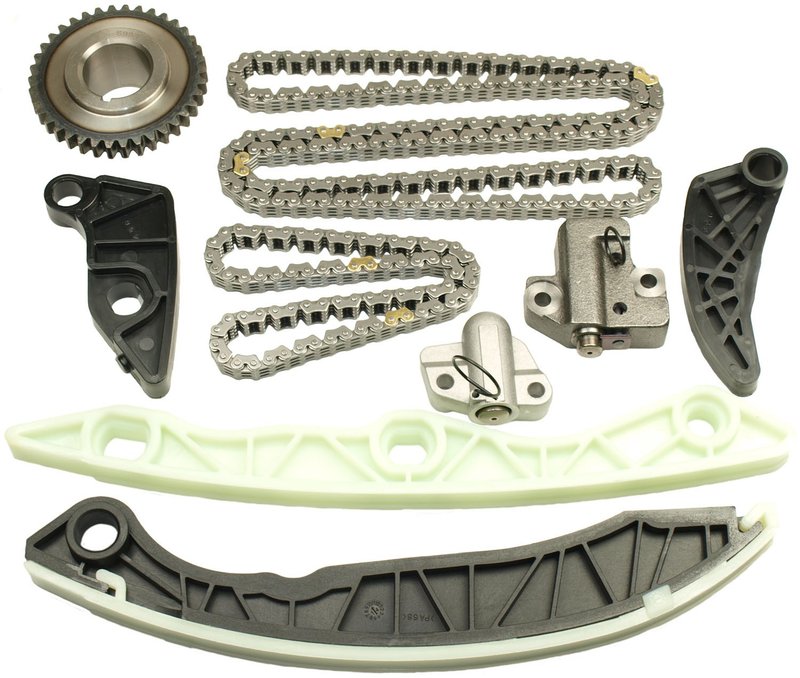

Cloyes 9-0736S Engine Timing Chain Kit - Front

Cloyes Timing Chain Kit for Journey, Compass, and Patriot

The Cloyes 9-0736S timing chain kit is built for select Dodge, Jeep, and Chrysler applications that need a direct replacement timing drive solution. It uses an inverted tooth steel chain with steel sprocket material, plus included guides and tensioner for a complete timing service on covered vehicles.

Key Features

• Brand: Cloyes Timing Chain Kit
• Part number: 9-0736S
• Inverted tooth timing chain design for smooth chain engagement
• Steel chain material and steel crankshaft sprocket material
• Chain length: 45 in. / 1143 mm
• Chain pitch: 0.25 in. / 6.35 mm
• Chain width: 0.45 in. / 11.43 mm
• Chain guides included
• Tensioner included
• Standard replacement grade
• Keyway adjustable: No

Product Details

Cloyes timing systems are engineered with CAD-based design and advanced materials, then tested for function and durability before release. This timing chain kit is designed to meet or exceed OEM performance requirements and deliver quiet, maintenance-free operation in the timing drive. The 9-0736S application coverage includes 2019-2020 Dodge Journey, 2009-2018 Dodge Journey, 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, 2011-2014 Chrysler 200, 2008-2014 Dodge Avenger, 2007-2012 Dodge Caliber, 2012 Dodge Caliber, and 2007-2010 Chrysler Sebring. For 2009-2018 Dodge Journey, 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, 2011-2014 Chrysler 200, 2008-2014 Dodge Avenger, 2007-2012 Dodge Caliber, and 2007-2010 Chrysler Sebring, the kit excludes VVT sprocket and camshaft sprockets.

This part cross-references 90736S for the same application.

What It Helps Address

• Timing chain stretch or excessive slack
• Noise from worn chain guides or tensioner components
• Timing drift caused by worn timing drive parts
• Service needs during engine timing system repair
• Replacement of worn timing chain hardware on covered Dodge, Jeep, and Chrysler models

Installation Notes

Verify engine code, timing drive configuration, and model year before installation. This kit includes guides and a tensioner, but it excludes VVT sprocket and camshaft sprockets on the applications noted above. Follow factory timing marks and service procedures during installation, and inspect related timing components for wear before reassembly.

Quality Assurance

Cloyes manufactures timing system components using CAD-designed parts and advanced materials, with testing focused on function and durability. The 9-0736S is a standard replacement timing chain kit intended to deliver OEM-level timing drive performance on the listed applications.
