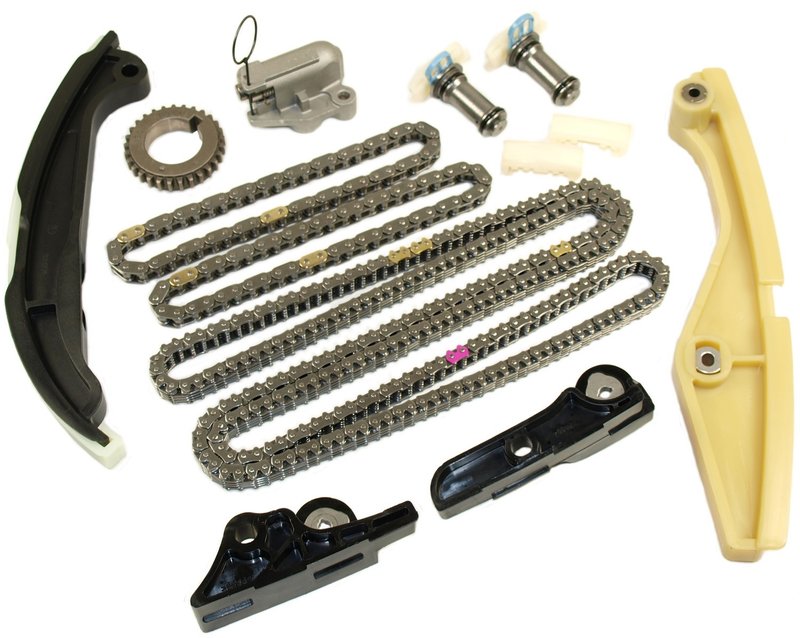

Cloyes 9-0738S Engine Timing Chain Kit

Cloyes Timing Chain Kit 9-0738S Overview

The Cloyes 9-0738S timing chain kit is a standard replacement engine timing solution for select Ford, Lincoln, and Mercury applications. Built around Cloyes timing system expertise, it is designed for quiet operation, dependable chain control, and OE-level performance in service.

This timing chain kit is a fitment-based choice for drivers searching for a Ford Taurus timing chain kit, Ford Explorer timing chain kit, or Lincoln MKZ timing chain kit with the correct application-specific components.

Key Features

• Standard replacement engine timing chain kit for select domestic applications
• Timing chain type: inverted tooth, single roller
• Chain material: metal and steel
• Chain guides included for timing system support
• Tensioner included for chain control
• Crankshaft sprocket material: metal
• Chain length: 31 in. (787.4 mm)
• Chain pitch: 0.25 in. (6.35 mm)
• Chain width: 0.606 in. (15.39 mm)
• Link quantity: 254
• Sprocket 1 tooth quantity: 29
• Keyway adjustable: No

Detailed Description

Cloyes timing chain kits are CAD designed and manufactured with advanced materials, then tested for function and durability to support consistent timing performance. The 9-0738S kit is built for applications that require a direct timing chain service solution without a Variable Valve Timing (VVT) sprocket, and it is listed for multiple Ford and Lincoln vehicles across the 2011-2019 model years. This makes it a practical option for timing service on vehicles such as the Ford Taurus, Ford Explorer, Ford F-150, Ford Mustang, and Lincoln MKZ when the application matches the catalog listing.

This part cross-references 90738S for the same application.

What This Part Helps Address

• Timing chain stretch or wear
• Noise from a worn timing drive system
• Timing chain guide deterioration
• Tensioner-related chain control issues
• Engine timing service on listed Ford and Lincoln models

Installation Notes

• Verify engine code and catalog application before installation.
• Confirm whether your vehicle requires a VVT sprocket; this kit does not include one.
• Use the vehicle-specific notes for cutoff dates on 2015-2017 Ford Transit and 2016 Ford F-150 applications.
• Inspect related timing components during service and replace worn parts as needed.
• Follow factory timing procedures and torque specifications during installation.

Quality Assurance

Cloyes manufactures timing system components using CAD-based design and advanced materials, with testing focused on function and durability. The brand’s timing chain kits are engineered to meet or exceed OEM performance requirements for the listed applications.

• Fits 2013-2019 Ford Taurus, N/A
• Fits 2017 Ford Explorer, N/A
• Fits 2016-2017 Ford F-150, N/A
• Fits 2011-2017 Ford Mustang, N/A
• Fits 2017 Lincoln Continental, N/A
• Fits 2011-2016 Ford Edge, N/A
• Fits 2011-2016 Ford Explorer, N/A
• Fits 2013-2016 Ford Flex, N/A
• Fits 2016 Ford Transit-150, N/A
• Fits 2016 Ford Transit-250, N/A
• Fits 2016 Ford Transit-350, N/A
• Fits 2016 Ford Transit-350 HD, N/A
• Fits 2013-2016 Lincoln MKS, N/A
• Fits 2011-2016 Lincoln MKX, N/A
• Fits 2013-2016 Lincoln MKZ, N/A
• Fits 2015 Ford F-150, N/A
• Fits 2011-2012 Ford F-150, N/A
• Fits 2015 Ford Transit-150, N/A
• Fits 2015 Ford Transit-250, N/A
• Fits 2015 Ford Transit-350, N/A
• Fits 2015 Ford Transit-350 HD, N/A
