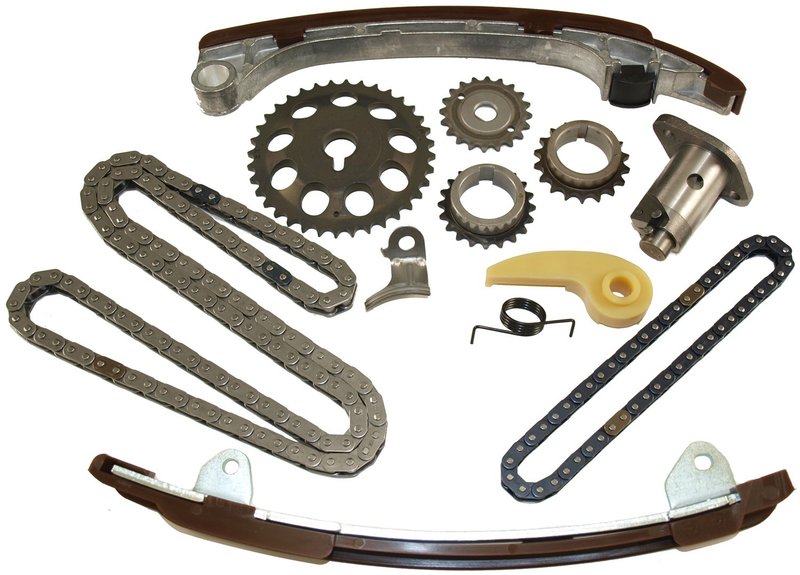

Cloyes 9-0752S Engine Timing Chain Kit - Front

Cloyes 9-0752S Timing Chain Kit

The Cloyes 9-0752S engine timing chain kit is a specific-fit timing solution for select Toyota, Scion, Lexus, and Pontiac applications. It is built around a primary single roller chain and a balance shaft single roller chain for engines that require precise cam and crank synchronization.

Designed for front-mounted applications, this timing chain kit is a direct-fit option for vehicles such as the Toyota Camry, Corolla, RAV4, Highlander, and Scion tC. It is engineered to meet or exceed OEM performance requirements while delivering consistent timing drive operation.

Key Features

• Specific-fit engine timing chain kit for select applications
• Primary-single roller and balance shaft single roller chain design
• CAD-designed components manufactured with advanced materials
• Extensively tested for function and durability
• Built to support quiet, maintenance-free timing system operation
• Fits front engine timing applications on select Toyota, Scion, Lexus, and Pontiac models

Application Details

This Cloyes timing chain kit, part number 9-0752S, is intended for vehicles that use a front timing drive layout and do not require a Variable Valve Timing sprocket in the kit. It is a direct replacement choice for timing service on 2001-2015 Toyota and related platforms, including the Toyota Camry, Toyota Corolla, Toyota RAV4, Toyota Highlander, Scion xB, and Scion tC.

This part cross-references Monroe Shocks & Struts (e.g., 90752S) for the same application.

What It Helps Address

• Timing chain noise from worn chain components
• Engine timing drift caused by stretched chains
• Rough running related to inaccurate cam/crank synchronization
• Service issues on front-mounted timing chain systems
• Wear in balance shaft and primary chain drive components

Installation Notes

Verify engine code, timing system layout, and VVT requirements before installation. This kit does not include the Variable Valve Timing sprocket, so confirm that your application matches the listed notes before ordering. Follow factory timing marks and service procedures during installation to maintain correct valve timing.

Quality Assurance

Cloyes designs and manufactures timing system components using CAD-based engineering and advanced materials, then tests parts for function and durability. The 9-0752S is built to meet or exceed OEM performance requirements for the listed applications.
