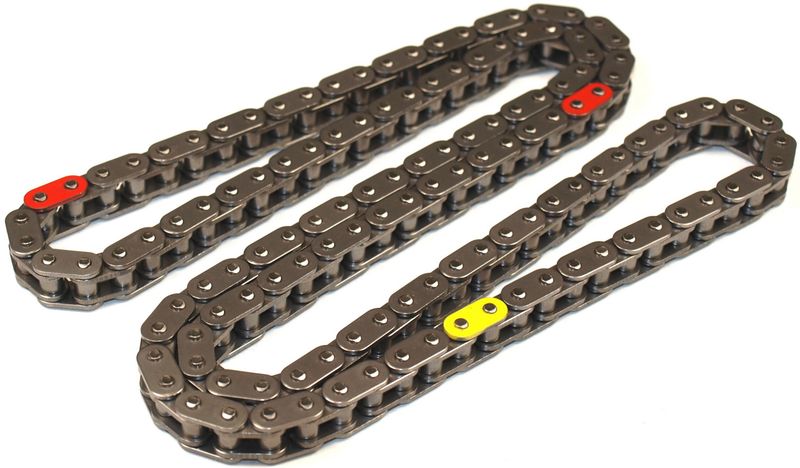

Cloyes 9-0975SDX Engine Timing Chain Kit

Timing Chain Kit Overview

Cloyes 9-0975SDX is a standard replacement engine timing chain kit built for precise timing system service. It is compatible with 2020-2024 Subaru Legacy and 2020-2024 Subaru Outback applications listed below.

Key Features

• Single roller timing chain construction for consistent chain engagement.
• Steel chain material for durability in engine timing service.
• Chain guides and tensioner included for a complete timing system repair.
• Standard replacement grade for service work that follows OE-style timing system layout.
• Part number 9-0975SDX for accurate ordering and catalog matching.

Detailed Description

This Cloyes timing chain kit is engineered for timing system precision and durability in Subaru Legacy and Subaru Outback applications. The kit uses a single roller steel chain with a 0.484-inch width and 0.315-inch pitch, and it includes the chain guides and tensioner specified for the application. Cloyes 9-0975SDX is intended for timing service where restoring chain control and maintaining proper camshaft synchronization are priorities. The part number 9-0975SDX also cross-references 90975SDX for the same application.

What It Helps Address

• Timing chain stretch or wear that can affect engine synchronization.
• Noisy timing system operation caused by worn chain components.
• Loss of chain control from aged guides or tensioner parts.
• Service needs when replacing timing components as a matched set.

Installation Notes and Tips

Verify engine code and timing component layout before installation. Cloyes recommends replacing all timing system components during service to maintain timing system integrity. Confirm fitment for 2020-2024 Subaru Legacy and 2020-2024 Subaru Outback before ordering.

Quality Assurance

Cloyes has supplied automotive timing systems since 1921 and backs its timing chain kits with technical support and an industry-leading warranty.
