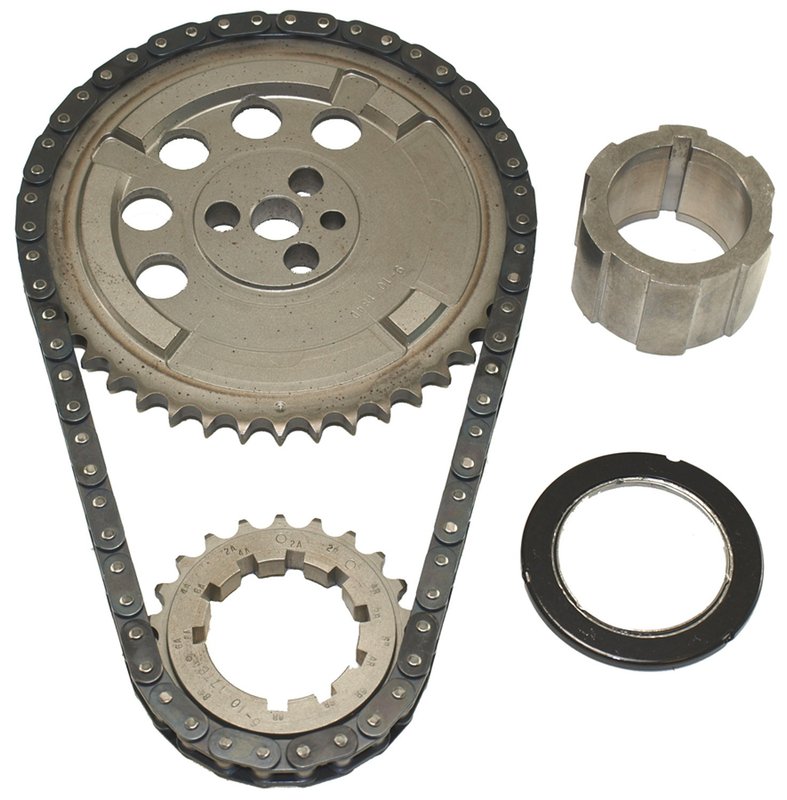

Cloyes 9-3672TX9Z Engine Timing Set

Cloyes 9-3672TX9Z Timing Set for CTS and Corvette

The Cloyes 9-3672TX9Z engine timing set is built for specific 2006-2007 Cadillac CTS and 2006 Chevrolet Corvette applications with a 3-bolt, 4-sensor hub. It combines a billet crankshaft sprocket with nine keyways for timing adjustment and a TRUE Roller Z chain for reduced friction and added strength.

Key Features

• Fits 2006-2007 Cadillac CTS, N/A, 3-bolt, 4-sensor hub; 9 keyway crank sprocket; race billet, with Z chain
• Fits 2006 Chevrolet Corvette, N/A, 3-bolt, 4-sensor hub; 9 keyway crank sprocket; race billet, with Z chain
• Billet crankshaft sprocket with 9 keyways for +/- 8 degrees of adjustability
• Heat-treated billet steel sprockets for added durability
• TRUE Roller 0.250 in. roller diameter Z chain for lower friction
• Press-fit center link design to improve load distribution and fatigue life
• Captured needle camshaft sprocket thrust bearing to reduce block thrust surface friction
• Hand-matched 3-piece set to help qualify center distance and minimize runout

Detailed Description

Cloyes 9-3672TX9Z is a specific-fit engine timing set for performance-oriented Cadillac CTS and Chevrolet Corvette builds that use the listed hub configuration. The adjustable 9-keyway crank sprocket allows timing changes in small increments, while the Z chain construction adds strength and helps reduce friction under demanding engine conditions. The hand-matched component set and captured needle thrust bearing support consistent timing set operation and reduced thrust surface wear.

This part cross-references part number 93672TX9Z for the same application.

Common Problems This Timing Set Can Address

• Timing chain stretch or excessive slack
• Inconsistent cam timing after engine service or rebuild
• Runout concerns in performance timing set setups
• Thrust surface friction at the cam sprocket/block interface
• Need for adjustable timing on a race billet crank sprocket setup

Installation Notes and Tips

Verify engine configuration before ordering, since this timing set is specific to 2006-2007 Cadillac CTS and 2006 Chevrolet Corvette applications with a 3-bolt, 4-sensor hub. Confirm center distance, sprocket alignment, and timing marks during installation, and follow the engine builder’s timing procedure for the adjustable keyway setting.

Quality Assurance

Cloyes uses heat-treated billet steel sprockets, a reinforced Z chain design, and hand-matched set verification to support consistent fit and durability in performance timing applications.
