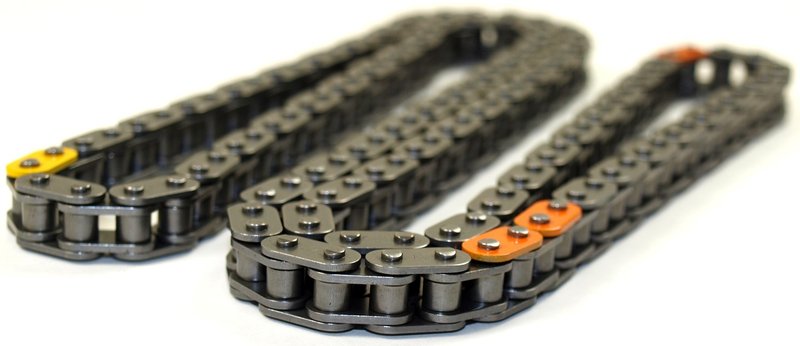

Cloyes 9-4220 Engine Timing Chain - Center

Cloyes Timing Chain 9-4220 for Toyota and Lexus Applications

The Cloyes 9-4220 engine timing chain is a specific-fit replacement for select Toyota, Lexus, Scion, and Pontiac applications. Built from steel with a single roller chain design, it is engineered for accurate crankshaft and camshaft synchronization in engines that require precise valve timing.

Key Features

• Steel construction for timing drive durability
• Single roller chain design with 8mm pitch
• Specific-fit application for direct vehicle matching
• 140-link chain with 4 timing marks
• Overall length: 21 7/8 inches
• Width: 0.48 inch
• Cloyes timing chain catalog part number 9-4220

Product Details

Cloyes timing chain 9-4220 is part of the Cloyes Timing Chain line, a product range focused on timing drive components for stock replacement and performance service. Cloyes uses CAD-based design, premium materials, and dimensional testing to help ensure proper fitment, chain-to-sprocket engagement, and stable engine timing. This part is used in applications such as Toyota Corolla, Toyota Prius, and Lexus CT200h timing chain service where accurate valve events are critical to engine operation.

This part cross-references OE-style numbers such as 13506-0T020 and 13506-37010 for the same application.

What This Timing Chain Helps Address

• Excessive timing chain stretch
• Noise from a worn engine timing drive
• Camshaft and crankshaft timing errors
• Rough running caused by timing drift
• Service replacement for high-mileage timing components

Installation Notes and Fitment

Fits 2022 Toyota Prius, center. Fits 2021 Toyota Prius Prime, center. Fits 2009-2020 Toyota Corolla, center. Fits 2010-2020 Toyota Prius, center. Fits 2019-2020 Toyota Prius AWD-e, center. Fits 2017-2020 Toyota Prius Prime, center. Fits 2015-2018 Toyota Prius V, center. Fits 2012-2013 Toyota Prius V, center. Fits 2015-2017 Lexus CT200h, center. Fits 2011-2013 Lexus CT200h, center. Fits 2015 Toyota Prius Plug-In, center. Fits 2012-2013 Toyota Prius Plug-In, center. Fits 2014 Lexus CT200h, center, to 10/31/2013. Fits 2008-2014 Scion xD, center. Fits 2009-2014 Toyota Matrix, center. Fits 2014 Toyota Prius Plug-In, center, to 10/31/2013. Fits 2014 Toyota Prius V, center, to 10/31/2013. Fits 2009-2010 Pontiac Vibe, N/A.

Cloyes recommends replacing the chain tensioner, sprockets, and guides during timing chain service to maintain system stability and accurate timing. Verify engine application and timing marks before installation, and confirm the vehicle-specific fitment for your Toyota Prius, Toyota Corolla, or Lexus CT200h application.

Quality Assurance

Cloyes designs and manufactures timing drive components with precision pitch control and extensive testing for function, fitment, and durability. The 9-4220 is built to support accurate engine timing in service applications where dependable chain-to-sprocket fit is required.
