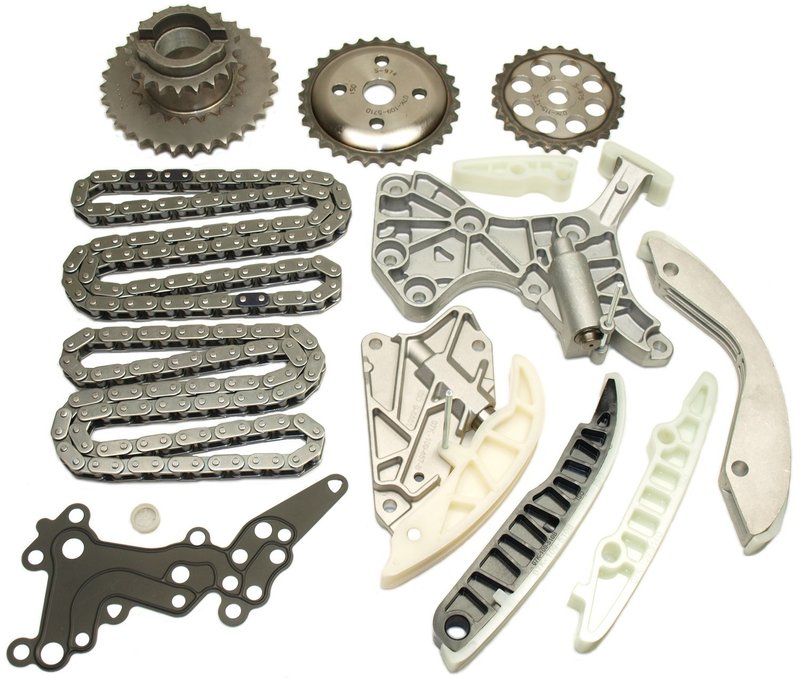

Cloyes 9-4224S Engine Timing Chain Kit - Front

Overview of Cloyes Engine Timing Chain Kit 9-4224S

The Cloyes Engine Timing Chain Kit 9-4224S is designed for Volkswagen vehicles including the Beetle, Bora, and Jetta models. This kit provides a reliable timing chain solution engineered with durable materials to maintain precise engine timing and performance.

• Includes a single roller steel timing chain with 84 links
• Chain length of 15.75 inches (400.05 mm) and width of 0.547 inches (13.84 mm)
• Camshaft sprocket made of steel for enhanced durability
• Aluminum and nylon chain guides included for smooth operation
• Tensioner included to maintain proper chain tension
• Standard replacement grade for direct fit and function

Technical Specifications and Features

The Cloyes 9-4224S timing chain kit features a single roller steel chain with a pitch of 0.375 inches (9.525 mm), ensuring consistent engagement with sprockets. The kit includes two chain guides constructed from aluminum and nylon, which reduce wear and noise during operation. The camshaft sprocket is made from steel, providing strength and resistance to wear. This kit does not include adjustable keyways and has zero maximum advance or retard at both camshaft and crankshaft, ensuring precise timing alignment. The included tensioner maintains optimal chain tension to prevent slack and potential engine timing issues.

Compatible Volkswagen Models and Applications

This timing chain kit is compatible with Volkswagen Beetle, Bora, and Jetta models. It is designed as a standard replacement part, making it suitable for routine maintenance or repair of the engine valve train components. The Cloyes 9-4224S kit addresses timing chain wear and related engine timing concerns specific to these Volkswagen vehicles.

• Resolves timing chain stretch and wear
• Prevents engine misfires caused by timing chain slack
• Eliminates noise from worn chain guides or tensioners
• Restores proper valve timing for improved engine performance
• Addresses potential camshaft or crankshaft timing errors

Installation Notes and Tips

Installation of the Cloyes 9-4224S timing chain kit should be performed by a qualified technician familiar with Volkswagen engine timing systems. Ensure all old components are fully removed and the engine is properly aligned before installing the new chain and guides. Use the included tensioner to maintain correct chain tension and verify timing marks on the camshaft and crankshaft sprockets. Follow manufacturer torque specifications and double-check timing alignment before engine start-up.

Quality Assurance and Warranty

Cloyes timing chain kits are manufactured to meet or exceed OEM specifications for fit, form, and function. The 9-4224S kit undergoes rigorous quality control to ensure durability and reliable engine timing performance. This product is backed by Cloyes' standard replacement grade warranty, providing assurance of its quality and compatibility with Volkswagen Beetle, Bora, and Jetta models.
