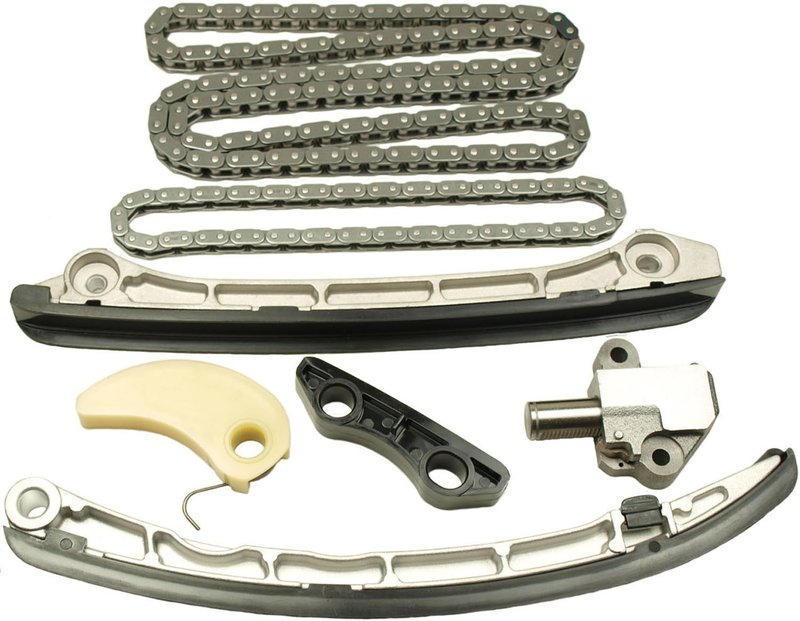

Cloyes 9-4305SX Engine Timing Chain Kit

Overview of Cloyes Engine Timing Chain Kit 9-4305SX

The Cloyes 9-4305SX engine timing chain kit is designed for precise timing and reliable performance in select Mazda vehicles. Engineered with durable steel and aluminum components, this kit supports the valve train system in Mazda 3, Mazda 6, and Mazda CX-7 models.

• Compatible with Mazda 3, Mazda 6, and Mazda CX-7
• Includes single roller steel timing chain with 138 links
• Chain length: 21.75 inches (552.45 mm)
• Chain width: 0.478 inches (12.13 mm)
• Comes with chain guides and tensioner for proper fitment
• Standard replacement grade for reliable engine timing
• Chain pitch: 0.315 inches (8 mm)
• Constructed with aluminum and nylon components for durability

Detailed Product Description

The Cloyes 9-4305SX timing chain kit features a single roller steel chain designed to maintain accurate valve timing in Mazda engines. The chain measures 21.75 inches in length and 0.478 inches in width, ensuring compatibility with the specified Mazda models. Included in the kit are chain guides made from aluminum and nylon materials, which help reduce wear and noise during operation. The tensioner is also part of the kit, providing consistent chain tension to prevent slack and maintain engine timing precision. This standard replacement grade kit is engineered to meet OEM specifications, making it suitable for maintenance or repair of the valve train components in Mazda 3, Mazda 6, and Mazda CX-7 vehicles.

Common Applications and Issues Addressed

• Replacement for worn or stretched timing chains causing engine timing errors
• Fixes chain guide wear that can lead to rattling or chain misalignment
• Resolves tensioner failure that results in improper chain tension and engine noise
• Addresses timing chain elongation affecting engine performance and fuel efficiency
• Prevents potential engine damage due to timing chain failure

Installation Notes and Tips

Installation of the Cloyes 9-4305SX timing chain kit requires mechanical expertise and proper tools. Ensure the engine is at top dead center (TDC) before removing the old timing chain. Replace all included components—chain, guides, and tensioner—to maintain system integrity. Verify chain alignment marks during installation to avoid timing errors. It is recommended to consult the vehicle’s service manual for torque specifications and detailed procedures. Proper installation will help maintain engine timing accuracy and extend the life of the valve train components.

Quality Assurance and Warranty

Cloyes timing chain kits are manufactured to meet or exceed OEM standards for durability and performance. The 9-4305SX kit undergoes rigorous quality control to ensure fitment and function in compatible Mazda models. While specific warranty details may vary, Cloyes typically offers a limited warranty against defects in materials and workmanship. Refer to the product documentation or manufacturer’s website for complete warranty information.
