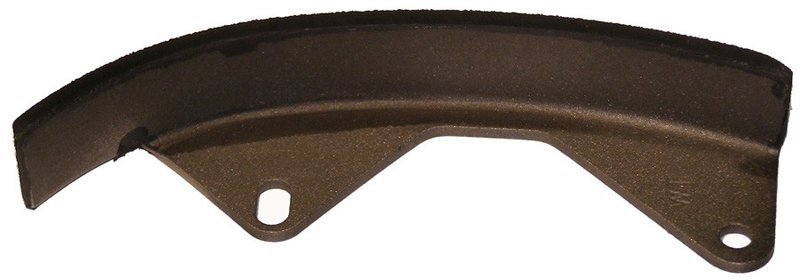

Cloyes 9-5122 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide for Nissan Right Side

The Cloyes 9-5122 engine timing chain guide is a specific-fit replacement for select Nissan applications that use a right-side chain guide. Built with rubber and steel construction, it provides the chain track needed to keep timing chain movement controlled in the valve train.

Use this timing chain guide for 1984-1986 Nissan 720, 1986-1989 Nissan D21, and 1987-1988 Nissan Pathfinder, right side. The Cloyes 9-5122 is engineered to meet or exceed OEM performance requirements and is designed for quiet, maintenance-free operation.

Key Features

• Rubber/steel construction for durability and chain contact control
• Specific-fit engine timing chain guide for right-side applications
• Shoe included for proper chain tracking surface
• Bracket included for mounting support
• Black/gray finish
• Dimensions: 6 1/2 in. length, 1.04 in. width, 1.92 in. height
• Two mounting holes with 0.26 in./0.49 in. inside diameter
• Not manually adjustable

Detailed Description

Cloyes 9-5122 is a timing chain guide for the engine valve train, positioned to guide the chain between the crankshaft and camshaft. Cloyes uses CAD-based design and advanced materials, then tests each part for function and durability to help maintain consistent timing chain control. This part cross-references Dayco 95122 for the same application.

For Nissan D21, Nissan Pathfinder, and Nissan 720 timing service, this guide supports proper chain alignment on the right side of the engine. Cloyes also recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain movement caused by guide wear or damage
• Valve timing issues related to chain tracking problems
• Uneven chain contact on the right-side guide path
• Service concerns during timing chain replacement on Nissan engines

Installation Notes and Tips

Confirm right-side placement before installation and verify application details against the vehicle’s engine configuration. Inspect the timing chain, tensioner, and sprockets for wear before reassembly. Replace related timing components during service to restore proper chain control and reduce repeat repairs.

Quality Assurance

Cloyes manufactures this timing chain guide to meet or exceed OEM performance requirements. Each part is designed with current material and CAD engineering methods and is tested for function and durability before release.
