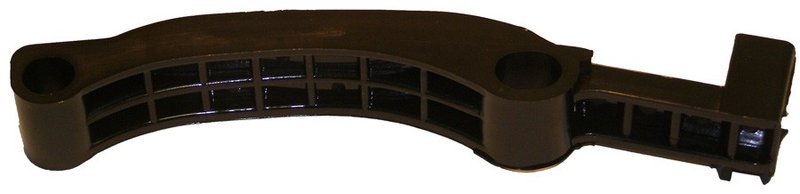

Cloyes 9-5132 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide for Toyota Applications

The Cloyes 9-5132 engine timing chain guide is a direct-fit valve train component for specific Toyota applications, including 1985-1995 Toyota 4Runner, right, 1985-1995 Toyota Pickup, right, and 1985 Toyota Celica, right. Built as a nylon chain guide with a shoe and bracket, it helps maintain timing chain alignment in the engine’s timing system.

For buyers searching for a Toyota 4Runner timing chain guide, Toyota Pickup timing chain guide, or a Cloyes 9-5132 replacement, this part is built to match application-specific requirements and OE-style fitment.

Key Features

• Brand: Cloyes
• Part number: 9-5132
• Engine timing chain guide for the valve train system
• Nylon construction with black finish
• Shoe included
• Bracket included
• Specific fit design for listed Toyota applications
• Right-side placement
• Mounting hole quantity: 2
• Mount hole inside diameter: 0.48 in. / 0.58 in.

Detailed Description

Cloyes 9-5132 is an engine timing chain guide designed for the chain that connects the crankshaft and camshaft. The guide uses nylon construction and application-specific dimensions to support proper chain routing in the timing system. It measures 9 7/8 inches long, 0.91 inches wide, and 1.46 inches high, with a black finish and a specific right-side fit.

This part cross-references 95132 and 1356235020 for the same application. If you are replacing a worn Toyota 4Runner timing chain guide, Toyota Pickup timing chain guide, or a 1985 Toyota Celica right-side guide, Cloyes 9-5132 provides a direct replacement option for the listed vehicles.

What This Part Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the timing system
• Wear at the chain contact point
• Loss of proper chain tracking on the right side
• Service needs during timing chain replacement on listed Toyota engines

Installation Notes and Tips

Replace the timing chain guide during timing service when the original guide shows wear, cracking, or surface damage. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when the chain is replaced, since these parts work together to keep the chain properly supported and tensioned. Verify right-side placement and application details before installation.

Quality Assurance

Cloyes designs and manufactures timing components using CAD-based engineering and advanced materials, then tests each part for function and durability. The 9-5132 timing chain guide is built to meet or exceed OEM performance requirements for the listed Toyota applications.
