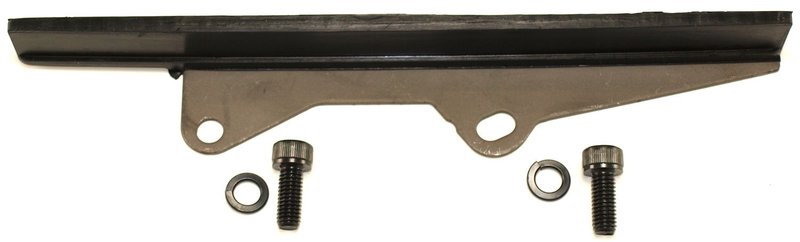

Cloyes 9-5133HD Engine Timing Chain Guide - Left

Overview of Cloyes Engine Timing Chain Guide 9-5133HD

The Cloyes 9-5133HD engine timing chain guide is designed specifically for Toyota 4Runner, Celica, and Pickup models. Constructed from durable rubber and steel materials, this chain guide ensures reliable performance and precise timing chain alignment for your engine's valve train system.

• Material: Rubber and steel construction for durability
• Chain Type: Engine timing chain guide with included shoe
• Dimensions: Length 9 7/8", Width 0.98", Height 1.48"
• Includes mounting bracket and bolts for installation
• Specific fitment for Toyota 4Runner, Celica, and Pickup
• Mounting holes: 2 with inside diameters of 0.34" and 0.51"
• Non-adjustable, manually fixed design

Detailed Product Description

The Cloyes 9-5133HD timing chain guide is engineered to maintain proper tension and alignment of the timing chain in select Toyota engines. Its rubber and steel composite construction provides a balance of flexibility and strength, reducing wear on the chain and related components. The included shoe helps minimize chain noise and vibration, contributing to smoother engine operation. This specific fit guide is designed to match the exact mounting points on Toyota 4Runner, Celica, and Pickup models, ensuring a secure and precise installation.

Common Applications and Problem Solving

This timing chain guide is used in the valve train system to support and guide the timing chain, preventing slack and misalignment. It addresses several common engine issues, including:

• Excessive timing chain noise or rattling
• Premature wear of timing chain components
• Timing chain slack causing engine timing errors
• Vibration and instability in the valve train
• Potential engine performance loss due to chain misalignment

Installation Notes and Tips

Installation of the Cloyes 9-5133HD timing chain guide requires removal of the timing cover and careful alignment with the engine block. The package includes the necessary mounting bracket and bolts, simplifying the replacement process. Ensure the mounting holes align correctly with the engine’s designated points, and torque bolts to manufacturer specifications. This guide is not manually adjustable, so precise positioning during installation is critical for optimal performance.

Quality Assurance and Warranty

Cloyes manufactures this timing chain guide to meet or exceed OEM specifications for Toyota vehicles. The combination of rubber and steel materials ensures durability under normal operating conditions. While specific warranty details are not provided, Cloyes products typically come with a limited warranty against defects in materials and workmanship, supporting reliable engine performance for Toyota 4Runner, Celica, and Pickup owners.
