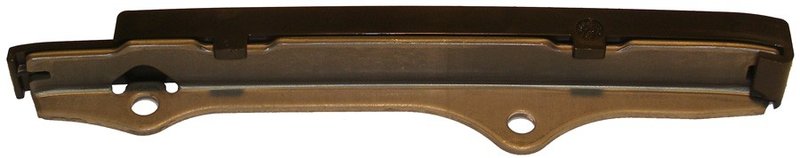

Cloyes 9-5177 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide for Nissan Applications

The Cloyes 9-5177 engine timing chain guide is a specific-fit valve train component for select Nissan engines. It provides a stable track for the timing chain between the crankshaft and camshaft, helping maintain proper chain control in demanding engine operation.

• Brand: Cloyes
• Part number: 9-5177
• Material: nylon/steel construction
• Black/gray finish
• Specific fit timing chain guide
• Shoe included
• Bracket included
• Not manually adjustable
• Mounting hole quantity: 2
• Mount hole inside diameter: 0.34 in / 0.34 in
• Length: 9 3/8 in
• Width: 0.88 in
• Height: 1.52 in

Detailed Product Overview

Cloyes 9-5177 is engineered to meet or exceed OEM performance requirements and is manufactured with CAD-designed geometry and advanced materials. The nylon/steel design is built for quiet operation and consistent chain guidance, while the included shoe and bracket support proper chain tracking in the timing system. This timing chain guide is a direct-fit service part for Nissan Pickup, Nissan D21, and Nissan 240SX right-side applications listed below.

This part cross-references Dayco 95177 for the same application.

Vehicle Fitment

• Fits 1995-2004 Nissan Pickup, right.
• Fits 1990-1994 Nissan D21, right.
• Fits 1989-1990 Nissan 240SX, right.

Common Repair Uses

• Timing chain noise from a worn guide surface
• Chain tracking issues in the right-side timing assembly
• Visible wear, cracking, or damage to the guide shoe
• Service replacement during timing chain repair
• Restoring proper chain alignment in Nissan Pickup, D21, or 240SX engines

Installation Notes and Tips

Verify engine code, right-side placement, and application details before installation. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain, since these parts work together to keep the chain properly tensioned and aligned. Always inspect the timing components for wear and confirm all mounting points match the original part.

Quality Assurance

Cloyes manufactures this timing chain guide using advanced materials and extensive function and durability testing to support consistent engine timing performance. The part is designed for OEM-level fit and operation in the listed Nissan applications.
