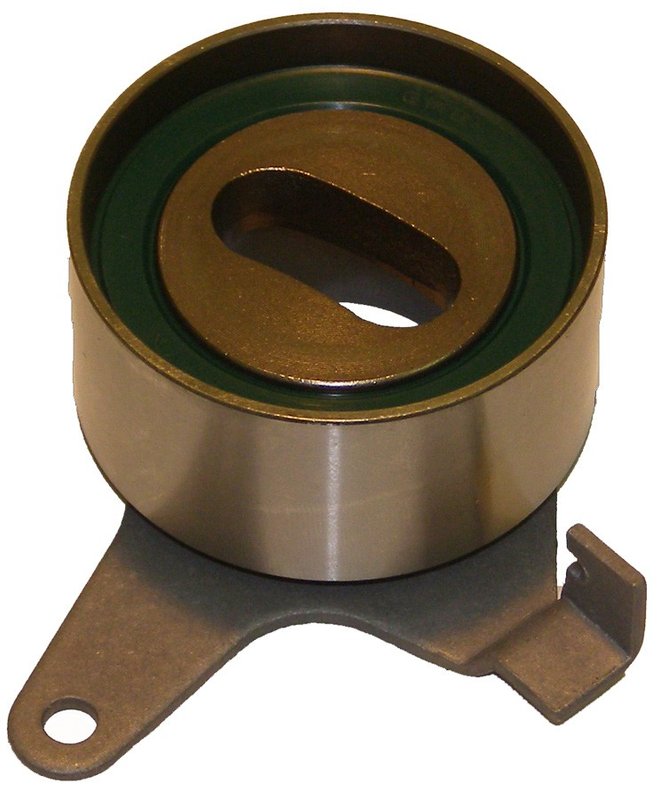

Cloyes 9-5213 Engine Timing Belt Tensioner - Front

Cloyes 9-5213 Timing Belt Tensioner

Cloyes 9-5213 is an engine timing belt tensioner built for specific Mazda, Ford, Mercury, and Kia applications. It maintains steady belt tension through crankshaft rotation to reduce belt noise, limit belt flap, and keep timing belt operation consistent over the belt’s service life.

• Steel construction with a gray finish
• Manual set, manually adjustable design
• Pulley included
• Specific fit for select front-mounted timing belt applications
• CAD designed and manufactured with advanced materials
• Extensively tested for function and durability

Detailed Product Overview

This Cloyes timing belt tensioner is engineered as a direct-fit replacement for select front engine timing systems. Part number 9-5213 is designed to provide constant belt tension, helping the timing belt transmit power efficiently while reducing noise and preventing belt flutter. It is a specific-fit component for applications including 1990-2005 Mazda Miata, 1990-2003 Mazda Protege, 1995-1997 Kia Sephia, 1991-1996 Ford Escort, 1991-1996 Mercury Tracer, 1994-1995 Mazda MX-3, and 1991-1994 Mercury Capri, all in the front position.

This part cross-references Nissens 95213 for the same application.

What This Part Helps Address

• Timing belt noise caused by inconsistent tension
• Belt flapping during engine operation
• Uneven belt loading across the timing system
• Wear from an aging or weak tensioner assembly
• Timing service repairs on Mazda Miata, Mazda Protege, and related front timing belt applications

Installation Notes and Tips

Replace the timing belt tensioner during timing belt service, and inspect the belt idler(s) at the same time. Cloyes recommends replacing both tensioner and idler components when the belt is changed because they play a critical role in keeping the belt tight. Verify application details by year, make, model, and front position before installation. Part number 9-5213 uses a manual set design and includes a pulley; bolts are not included.

Quality Assurance

Cloyes manufactures this tensioner using CAD-designed processes and advanced materials, then tests each part for function and durability to support consistent performance over the service life of the timing belt.
