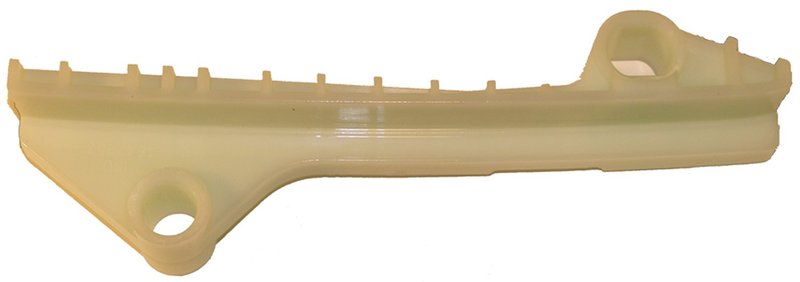

Cloyes 9-5310 Engine Timing Chain Guide - Upper

Cloyes 9-5310 Timing Chain Guide

The Cloyes 9-5310 engine timing chain guide is a specific-fit replacement for upper timing chain service on select Cadillac, Buick, and Oldsmobile applications. Built with a nylon guide surface and bracket support, it helps maintain proper chain tracking in engines that use a chain-driven camshaft system.

Key Features

• Specific-fit engine timing chain guide for upper chain applications
• Nylon guide surface with included shoe and bracket
• Non-adjustable design for direct replacement use
• Measures 7 5/8 in. long, 1.35 in. wide, and 1.91 in. high
• White finish with two mounting holes and 0.51 in./0.61 in. mount hole inside diameter
• Designed to meet or exceed OEM performance requirements
• This part cross-references Dayco 95310 for the same application.

Detailed Description

Cloyes part number 9-5310 is an upper engine timing chain guide engineered for specific vehicle applications, including 2006-2011 Buick Lucerne, 2006-2011 Cadillac DTS, 2005-2010 Cadillac STS, 2004-2009 Cadillac SRX, 2004-2009 Cadillac XLR, 1994-2005 Cadillac DeVille, 1993-2004 Cadillac Seville, 2001-2003 Oldsmobile Aurora, 1995-1999 Oldsmobile Aurora, 1993-2002 Cadillac Eldorado, and 1993 Cadillac Allante. It is manufactured with advanced materials and CAD-based design practices, then tested for function and durability to support quiet timing chain operation. The Cloyes 9-5310 is a direct-fit timing chain guide for engines that require precise chain control at the upper position.

What It Helps Address

• Timing chain noise from worn guide surfaces
• Chain tracking issues caused by damaged or degraded guides
• Upper timing system wear during chain service
• Loss of proper chain support in high-mileage engines
• Repeat timing service caused by replacing only the chain

Installation Notes and Tips

Use this guide only on the confirmed specific-fit applications listed above. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together so the timing system components work with the same wear pattern. Verify upper position fitment and mounting hole dimensions before installation, and follow the vehicle service procedure for timing alignment.

Quality Assurance

Cloyes designs and manufactures timing components using advanced materials and tests each part for function and durability. This guide is built to meet or exceed OEM performance requirements for the listed applications.
