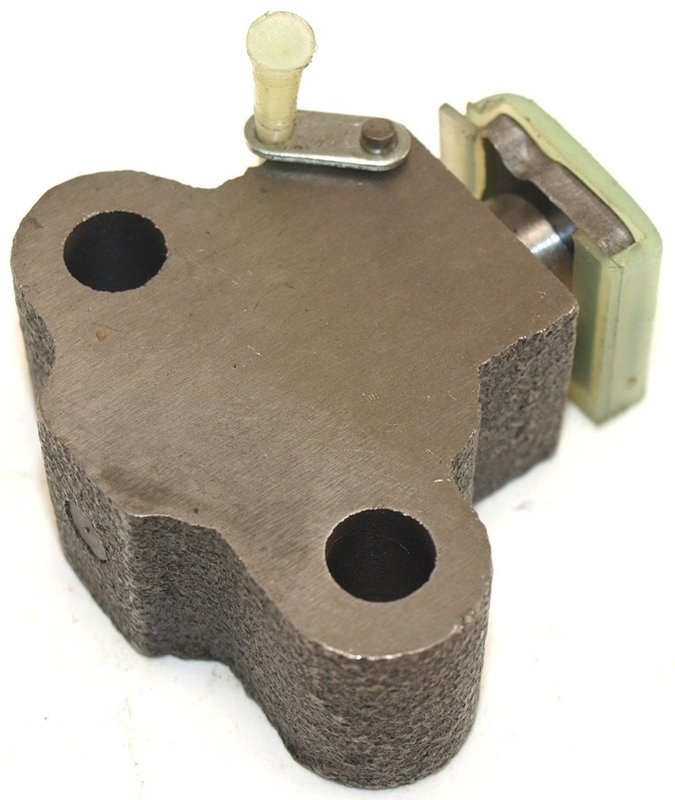

Cloyes 9-5313 Engine Timing Chain Tensioner - Upper

Engine Timing Chain Tensioner for OE Fit

The Cloyes 9-5313 engine timing chain tensioner is built for specific GM applications that require stable timing chain control and consistent chain tension. It is designed for upper timing chain service on vehicles such as the Cadillac DeVille, Seville, Eldorado, DTS, STS, SRX, XLR, Allante, Buick Lucerne, and Oldsmobile Aurora.

With a nylon/cast construction, hydraulic/spring chain design, and an included shoe, this timing chain tensioner is engineered to maintain proper chain tension while helping reduce noise. Cloyes 9-5313 is a direct-fit timing chain tensioner for select Cadillac and Buick engines, and it meets or exceeds OEM performance requirements.

Key Features

• Specific-fit engine timing chain tensioner for upper timing chain applications
• Hydraulic/spring chain type for OE-style tension control
• Nylon/cast material construction
• Shoe included for proper chain contact
• Activation pin design
• Spring included
• White/gray finish
• Dimensions: 2.18 in. length, 2.23 in. width, 0.90 in. height
• Two mounting holes with 0.36 in. inside diameter

Detailed Description

Cloyes 9-5313 is an engine timing chain tensioner designed to maintain correct timing chain tension in specific upper-chain GM engine applications. The hydraulic/spring design helps keep the chain properly loaded during operation, while the included shoe supports smooth chain contact. Cloyes uses CAD-based design and advanced materials to produce components that are tested for function and durability before release. This part cross-references Dayco 95313 and 12556030 for the same application.

Fits 2006-2011 Buick Lucerne, Upper. Fits 2006-2011 Cadillac DTS, Upper. Fits 2005-2010 Cadillac STS, Upper. Fits 2004-2009 Cadillac SRX, Upper. Fits 2004-2009 Cadillac XLR, Upper. Fits 1994-2005 Cadillac DeVille, Upper. Fits 1993-2004 Cadillac Seville, Upper. Fits 2001-2003 Oldsmobile Aurora, Upper. Fits 1995-1999 Oldsmobile Aurora, Upper. Fits 1993-2002 Cadillac Eldorado, Upper. Fits 1993 Cadillac Allante, Upper.

What It Helps Address

• Timing chain slack in upper chain systems
• Chain noise from worn tension control components
• Irregular chain loading caused by aging tensioner parts
• Service issues during timing chain replacement on Cadillac and Buick engines
• Wear in related timing components when the chain system is not refreshed together

Installation Notes and Tips

Replace the chain tensioner, sprockets, and guides together when servicing the timing chain system. Cloyes recommends renewing these related components at the same time because they work together to keep the chain tight and properly supported. Verify application details in the catalog before installation, and confirm the upper-position fitment for your vehicle.

Quality Assurance

Cloyes timing chain tensioners are manufactured with CAD-designed components, advanced materials, and testing for function and durability. This part is built to meet or exceed OEM performance requirements for the listed applications.
