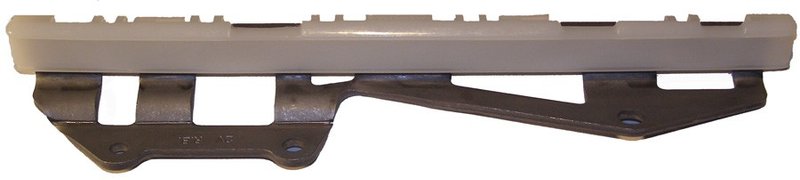

Cloyes 9-5319 Engine Timing Chain Guide - Right

Cloyes 9-5319 Timing Chain Guide

The Cloyes 9-5319 engine timing chain guide is a specific-fit replacement for select Ford, Lincoln, and Mercury applications with right-side timing chain service needs. Built with a nylon and steel construction, it provides a precise chain track for the crankshaft-to-camshaft drive system.

Compatible with 1993-2002 Lincoln Town Car, right; 1997-2001 Ford F-150, right; and other listed V8 applications, this timing chain guide is engineered for quiet operation and consistent chain control. The 9-5319 is also a direct cross-reference to Dayco 95319 and OE number F3AZ6K297A for the same application.

Key Features

• Specific-fit engine timing chain guide for the right side
• Nylon/steel construction for guided chain contact and durability
• Shoe included for proper chain surface support
• Bracket included for application-specific mounting
• Non-adjustable design for OE-style fitment
• Measures 11 1/4 inches long, 1.54 inches wide, and 1.85 inches high
• White/gray finish

Detailed Description

Cloyes part number 9-5319 is a timing chain guide designed to maintain the correct path of the timing chain between the crankshaft and camshaft. Cloyes manufactures this guide using CAD-based design and advanced materials, then tests each part for function and durability to support consistent engine timing performance. For timing chain service, Cloyes recommends replacing the chain tensioner, sprockets, and guides together when the chain is replaced.

This guide is listed for right-side applications on vehicles such as the Ford Crown Victoria, Mercury Grand Marquis, Ford Mustang, Ford Thunderbird, Mercury Cougar, Ford Expedition, Ford F-150, Ford F-250, and Lincoln Town Car. If you are searching for a right timing chain guide for a 1997-2001 Ford F-150 or a 1993-2002 Lincoln Town Car, the 9-5319 is the correct OE-style service part to review.

What It Helps Address

• Timing chain noise from worn guide surfaces
• Chain misalignment in the valve train
• Excessive chain movement caused by guide wear
• Timing system service on high-mileage engines
• Replacement of a damaged right-side timing chain guide

Installation Notes and Tips

Verify engine code, timing cover configuration, and right-side placement before installation. Inspect the chain tensioner, sprockets, and related guide components during service, since wear in those parts can affect chain control and timing accuracy. Confirm the mounting hole pattern and dimensions against the removed part before assembly.

Quality Assurance

Cloyes designs and manufactures timing components with advanced materials and application-specific engineering. Each guide is tested for function and durability to support reliable engine timing service.
