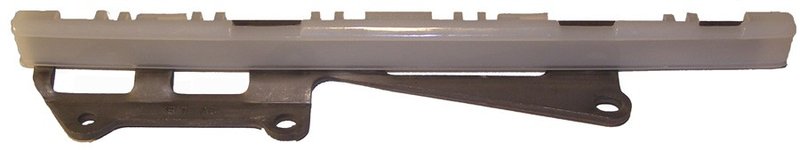

Cloyes 9-5320 Engine Timing Chain Guide - Left

Reliable Engine Timing Chain Guide for Ford, Lincoln, and Mercury Vehicles

The Cloyes 9-5320 engine timing chain guide is designed specifically for select Ford, Lincoln, and Mercury models. Constructed from durable nylon and steel, this chain guide ensures precise timing chain alignment and smooth engine operation.

• Material: Nylon and steel construction for durability and wear resistance
• Length: 11 1/4 inches, Width: 1.25 inches, Height: 1.56 inches
• Includes shoe and mounting bracket for secure installation
• Designed for specific fitment on Ford F-150, Mustang, Crown Victoria, and more
• Non-adjustable with three mounting holes for precise positioning

Durable Construction and Precise Fitment

The Cloyes 9-5320 timing chain guide features a nylon and steel composite design that balances strength and flexibility. Its white and gray color indicates the high-quality materials used to reduce friction and wear on the timing chain. This specific-fit guide is engineered for compatibility with Ford, Lincoln, and Mercury vehicles including the Mustang, Thunderbird, F-150, and Town Car. The included mounting bracket and shoe provide a secure fit, while the three mounting holes with varying inside diameters (0.39", 0.33", 0.27") ensure proper alignment within the engine valve train system.

Applications and Common Issues Addressed

• Prevents timing chain slack and misalignment in Ford F-150 and Lincoln Town Car engines
• Reduces noise caused by worn or damaged chain guides in Mercury Cougar and Grand Marquis
• Helps maintain proper valve timing for smooth engine performance in Mustang and Thunderbird models
• Replaces broken or worn guides to avoid potential engine damage in E-150 Econoline vehicles
• Supports reliable operation of the valve train components in Crown Victoria and Expedition

Installation Notes and Tips

Installation of the Cloyes 9-5320 timing chain guide requires removal of the timing cover and careful alignment of the guide with the timing chain. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure the three mounting holes align correctly with the engine block to maintain proper chain tension. This part is not manually adjustable, so precise fitment is critical. Professional installation is recommended for optimal results.

Quality Assurance and Warranty Information

Cloyes is a recognized manufacturer of engine timing components, known for meeting OEM specifications. The 9-5320 timing chain guide undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, Cloyes products typically come with a limited warranty against defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
