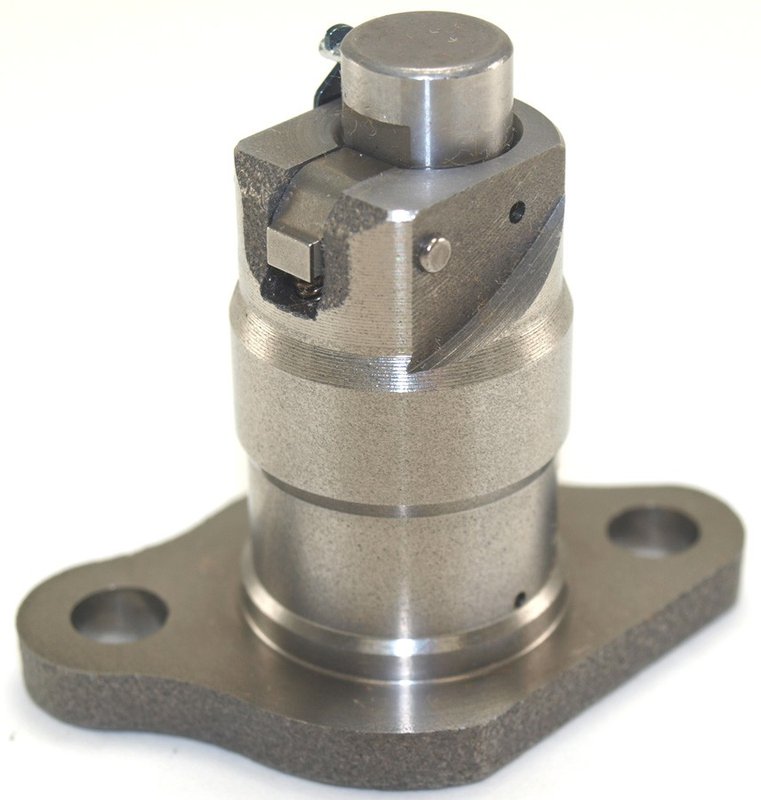

Cloyes 9-5359 Engine Timing Chain Tensioner

Reliable Engine Timing Chain Tensioner for Toyota Vehicles

The Cloyes 9-5359 engine timing chain tensioner is designed specifically for select Toyota models including the 4Runner, Previa, T100, and Tacoma. This cast hydraulic/spring tensioner ensures precise chain tension to maintain optimal engine performance and timing accuracy.

Key Features of Cloyes 9-5359 Timing Chain Tensioner

• Material: Durable cast construction for long-lasting strength
• Chain Type: Hydraulic/spring mechanism for consistent tension
• Activation Type: Retaining hook for secure engagement
• Dimensions: Length 2.74", Width 1.17", Height 2.38"
• Includes spring and gasket for proper installation
• Mounting: Two mounting holes with 0.35" inside diameter
• Specific fitment for Toyota 4Runner, Previa, T100, and Tacoma models
• Non-adjustable, designed for precise factory specifications

Detailed Description of the Cloyes 9-5359 Timing Chain Tensioner

This engine timing chain tensioner from Cloyes is engineered to maintain the correct tension on the timing chain, preventing slack and reducing wear on the valve train components. The cast material provides durability under high engine temperatures and stress. Featuring a hydraulic/spring design, the tensioner automatically adjusts to chain movement without manual intervention, ensuring consistent timing chain tension throughout engine operation. The retaining hook activation type secures the tensioner in place during installation and operation. This part is a specific fit for Toyota 4Runner, Previa, T100, and Tacoma models, ensuring compatibility and proper function.

Common Issues Addressed by This Timing Chain Tensioner

• Eliminates timing chain slack that can cause engine misfires
• Prevents premature wear of timing chain and sprockets
• Reduces noise caused by loose timing chains
• Maintains accurate valve timing for optimal engine performance
• Helps avoid costly engine damage due to timing chain failure

Installation Notes and Tips

Installation of the Cloyes 9-5359 timing chain tensioner requires removal of the timing cover and careful alignment with the timing chain. Ensure the retaining hook is properly engaged to secure the tensioner during installation. The included gasket should be replaced to prevent oil leaks. This tensioner is not manually adjustable, so verify correct positioning before final assembly. Use manufacturer torque specifications for mounting bolts (not included).

Quality Assurance and Warranty Information

Cloyes timing chain tensioners are manufactured to meet or exceed OEM standards for fit, form, and function. The 9-5359 part number undergoes rigorous quality control to ensure durability and reliable performance in Toyota 4Runner, Previa, T100, and Tacoma engines. This product includes a gasket and spring to support proper installation. Warranty coverage details should be confirmed with the distributor or vehicle manufacturer.
