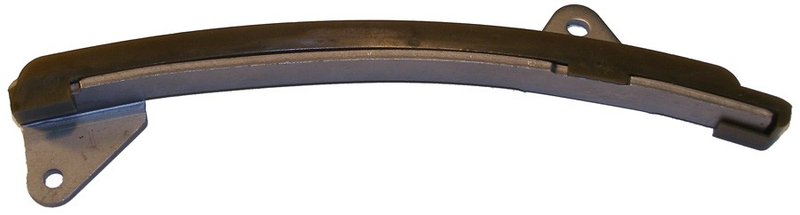

Cloyes 9-5379 Engine Timing Chain Guide - Left

Cloyes 9-5379 Timing Chain Guide

The Cloyes 9-5379 engine timing chain guide is a direct-fit valve train component for specific Toyota, Chevrolet, and Pontiac applications. Built with a nylon and steel construction, it provides a fixed chain path with an included shoe and bracket for left-side timing chain support.

Key Features

• Engine timing chain guide for the left side
• Nylon/steel construction for controlled chain contact
• Shoe included for chain tracking surface support
• Bracket included for application-specific mounting
• Specific-fit design for confirmed vehicle applications
• Length: 10 1/8 in.; width: 0.92 in.; height: 2.43 in.
• Two mounting holes with 0.25 in./0.32 in. inside diameter

Detailed Description

Cloyes 9-5379 is an engine timing chain guide designed to maintain proper chain routing between the crankshaft and camshaft on supported vehicles. It is engineered to meet or exceed OEM performance requirements and uses CAD-designed construction with advanced materials for consistent operation. This timing chain guide is listed for left-side fitment on applications including 1999-2008 Toyota Corolla, 2003-2008 Toyota Matrix, 2000-2005 Toyota Celica, 2000-2005 Toyota MR2 Spyder, 1999 Toyota 4Runner, 1999-2002 Chevrolet Prizm, and 2003-2008 Pontiac Vibe. The Cloyes 9-5379 part number is also referenced by 95379, 94856700, and 1356122020 for the same application.

What It Helps Address

• Timing chain noise from worn guide surfaces
• Chain misalignment caused by damaged guide material
• Excess chain movement from degraded valve train components
• Uneven chain tracking on left-side timing assemblies
• Service issues during timing chain replacement on listed vehicles

Installation Notes

Verify engine code and left-side application before installation. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system to maintain proper chain control. Confirm mounting hole size, bracket location, and overall dimensions against the original part before assembly.

Quality Assurance

Cloyes manufactures this timing chain guide using CAD-based design and advanced materials, then tests each part for function and durability to support reliable engine timing performance.
