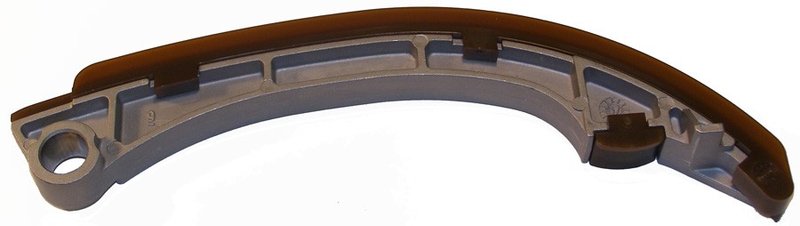

Cloyes 9-5380 Engine Timing Chain Tensioner Guide - Right

Cloyes 9-5380 Timing Chain Tensioner Guide

The Cloyes 9-5380 engine timing chain tensioner guide is a specific-fit replacement for select Toyota, Pontiac, and Chevrolet applications. Built with a nylon/aluminum construction and a fixed design, it helps maintain timing chain alignment on the right side of the engine.

Key Features

• Specific-fit engine timing chain tensioner guide for select applications
• Nylon/aluminum construction for guided chain contact and support
• Shoe included for direct replacement of the guide surface
• Bracket included for proper mounting
• Fixed, non-adjustable design
• Measures 9 3/8 in. long, 1.02 in. wide, and 2.85 in. high
• Brown/gray finish
• Mounting hole inside diameter: 0.59 in.

Detailed Description

Cloyes 9-5380 is an engine timing chain tensioner guide designed for the right side of the timing system on select 1998-2008 Toyota Corolla, Toyota Matrix, Toyota Celica, Toyota MR2 Spyder, Pontiac Vibe, and Chevrolet Prizm models. As a timing chain guide, it provides a defined track for the chain between the crankshaft and camshaft, helping maintain proper chain routing and tension control. Cloyes manufactures this part using CAD-based design and advanced materials, with testing focused on function and durability. This part cross-references Nissens 95380 for the same application.

Vehicle Fitment

• Fits 2003-2008 Pontiac Vibe, right.
• Fits 1999-2008 Toyota Corolla, right.
• Fits 2003-2008 Toyota Matrix, right.
• Fits 2000-2005 Toyota Celica, right.
• Fits 2000-2005 Toyota MR2 Spyder, right.
• Fits 1999-2002 Chevrolet Prizm, right.
• Fits 1998 Chevrolet Prizm, right, from 6/98.
• Fits 1998 Toyota Corolla, right, from 6/98.

What It Helps Address

• Timing chain noise caused by a worn guide surface
• Chain misalignment on the right side of the timing assembly
• Excess chain movement from a deteriorated guide shoe
• Uneven wear in the timing chain system
• Service issues during timing chain replacement on select Toyota Corolla and Matrix applications

Installation Notes and Tips

Verify engine application and right-side position before installation. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides at the same time because these components work together to keep the chain properly supported and tensioned. Confirm mounting hole size and guide dimensions against the original part before assembly.

Quality Assurance

Cloyes designs and manufactures timing components with CAD-based engineering and advanced materials, then tests each part for function and durability to support consistent operation in the timing system.
