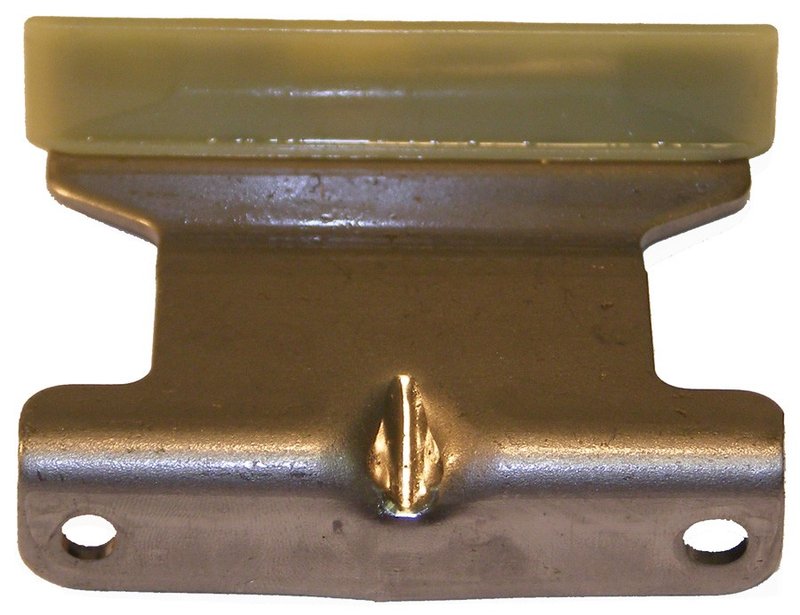

Cloyes 9-5382 Engine Timing Chain Guide - Upper

Cloyes 9-5382 Timing Chain Guide

The Cloyes 9-5382 engine timing chain guide is a specific-fit replacement for a wide range of GM and Saab applications. Built with nylon and steel construction, it helps keep the timing chain aligned as it runs between the crankshaft and camshaft.

Fits 2000-2017 Buick, Chevrolet, GMC, Pontiac, Saturn, and Saab upper timing chain applications listed below, including Chevrolet Equinox, GMC Terrain, and Buick Regal.

Key Features

• Nylon/steel construction for the guide body and wear surface
• Specific-fit design for listed upper timing chain applications
• Shoe included for direct replacement use
• Bracket included
• White/gray finish
• 3 1/2 in. length, 0.69 in. width, and 2.73 in. height
• Two mounting holes with 0.24 in./0.28 in. inside diameter
• Not manually adjustable

Detailed Description

Cloyes 9-5382 is an upper engine timing chain guide designed for vehicles that rely on precise chain tracking to maintain camshaft and crankshaft synchronization. Cloyes manufactures this guide using CAD-based design and advanced materials, then tests the part for function and durability to support consistent operation. The result is a replacement timing chain guide built for OE-style fitment and quiet service in the applications listed.

This part cross-references 95382 and 12588387 for the same application. It is a direct-fit option for models such as the Chevrolet Equinox, Chevrolet Malibu, GMC Terrain, Buick LaCrosse, and Saab 9-3 where the upper guide is specified.

What This Part Helps Address

• Timing chain noise from a worn or damaged guide surface
• Chain misalignment in the upper timing drive
• Excessive chain movement caused by guide wear
• Service issues during timing chain replacement on listed GM and Saab engines
• Restoration of proper chain tracking after guide failure

Installation Notes and Tips

Replace the timing chain guide when the chain is serviced, and inspect the tensioner and sprockets at the same time. Cloyes recommends replacing the chain tensioner(s), sprocket(s), and guide(s) together because these components work as a system to keep the chain tight and properly aligned. Verify application details by year, make, model, and upper position before installation.

Compatible with 2011-2017 Buick Regal, upper; 2012-2017 Buick Verano, upper; 2010-2017 Chevrolet Equinox, upper; 2010-2017 GMC Terrain, upper; 2010-2016 Buick LaCrosse, upper; 2010-2015 Chevrolet Captiva Sport, upper; 2014 Chevrolet Impala, upper; 2004-2014 Chevrolet Malibu, upper; 2006-2011 Chevrolet HHR, upper; 2003-2011 Saab 9-3, upper; 2010-2011 Saab 9-3X, upper; 2011 Saab 9-5, upper; 2010 Buick Allure, upper; 2005-2010 Chevrolet Cobalt, upper; 2007-2010 Pontiac G5, upper; 2006-2010 Pontiac G6, upper; 2007-2010 Saturn Sky, upper; 2002-2010 Saturn Vue, upper; 2006-2009 Pontiac Solstice, upper; 2007-2009 Saturn Aura, upper; 2003-2007 Saturn Ion, upper; 2005-2006 Pontiac Pursuit, upper; 2002-2005 Chevrolet Cavalier, upper; 2004-2005 Chevrolet Classic, upper; 2002-2005 Pontiac Grand Am, upper; 2002-2005 Pontiac Sunfire, upper; 2002-2004 Oldsmobile Alero, upper; 2004 Saturn L300, upper; 2001-2003 Saturn L200, upper; 2001-2003 Saturn LW200, upper; 2001-2002 Chevrolet Astra, upper; 2001-2002 Saturn L100, upper; 2000 Saturn LS, upper; 2000 Saturn LS1, upper; 2000 Saturn LW1, upper.

Quality Assurance

Cloyes designs and manufactures timing components with advanced materials and extensive function and durability testing to support dependable performance in service.
