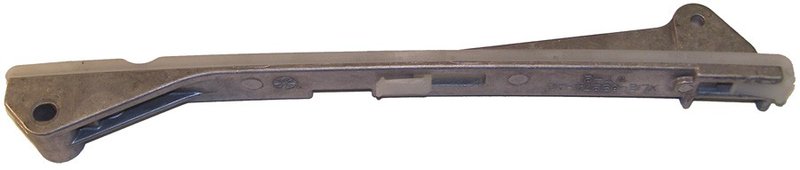

Cloyes 9-5392 Engine Timing Chain Guide - Left

Cloyes Timing Chain Guide 9-5392

Cloyes 9-5392 is a specific-fit engine timing chain guide for selected Lincoln Navigator and Lincoln Blackwood applications. It is built with a nylon/aluminum construction and a fixed design to help keep the timing chain aligned in the engine’s valve train.

Key Features

• Specific-fit engine timing chain guide for confirmed applications
• Nylon/aluminum construction for guided chain contact surfaces
• Shoe included for chain tracking support
• Bracket included for direct mounting
• Fixed, non-adjustable design
• White/gray finish
• Measures 12 1/8 in. long, 1.17 in. wide, and 2.14 in. high

Application Details

This Cloyes timing chain guide is used in the engine timing system to help maintain chain path between the crankshaft and camshaft. It is listed for 1999-2004 Lincoln Navigator, left, and 2002 Lincoln Blackwood, left. If you are searching for a Lincoln Navigator timing chain guide 9-5392 or a Lincoln Blackwood left timing chain guide, this part matches the confirmed fitment shown here. Part number 9-5392 also cross-references XL1Z6K297AA for the same application.

What It Helps Address

• Timing chain noise caused by worn guide surfaces
• Chain misalignment in the valve train
• Excessive chain movement from a damaged guide
• Service needs during timing chain replacement on Lincoln Navigator and Lincoln Blackwood engines

Installation Notes

Verify engine application and left-side position before installation. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system, since these components work together to keep chain tension and alignment consistent. Confirm mounting hole size and guide dimensions against the original part before assembly.

Quality Assurance

Cloyes designs and manufactures timing components using CAD-based engineering and advanced materials, then tests parts for function and durability to help meet or exceed OEM performance requirements. The 9-5392 timing chain guide is built for quiet, maintenance-free operation in the specified Lincoln applications.
