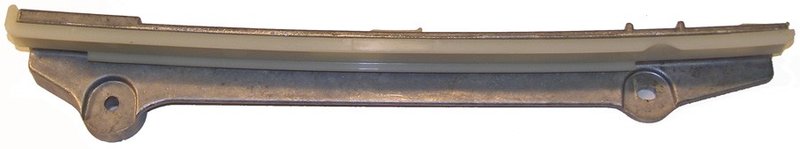

Cloyes 9-5393 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide for Navigator and Blackwood

Cloyes 9-5393 is a specific-fit engine timing chain guide for the right side of select Lincoln V8 applications. It is built with a nylon/aluminum construction and includes the shoe and bracket needed for proper chain tracking in the valve train.

Key Features

• Specific-fit engine timing chain guide for select Lincoln applications
• Nylon/aluminum construction for chain contact durability
• Shoe included for direct guide service
• Bracket included for proper mounting
• 12 1/8 in. length, 1.43 in. width, and 1.61 in. height
• White/gray finish
• Two mounting holes with 0.24 in./0.31 in. inside diameter
• Not manually adjustable

Detailed Description

The Cloyes 9-5393 timing chain guide is engineered to route and stabilize the timing chain between the crankshaft and camshaft. Cloyes manufactures this guide using CAD-based design and advanced materials, then tests the part for function and durability to support consistent valve train operation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. It fits 1999-2004 Lincoln Navigator, right, and 2002 Lincoln Blackwood, right, making it a direct-match option for owners searching for a Lincoln Navigator right timing chain guide or a 2002 Lincoln Blackwood right engine timing chain guide. The Cloyes 9-5393 is also referenced by part number 95393 for catalog lookup.

What It Helps Address

• Timing chain noise caused by a worn guide surface
• Chain tracking issues from damaged or broken guide material
• Valve train instability related to guide wear
• Improper chain alignment in the right-side timing assembly
• Service needs during timing chain replacement on Lincoln Navigator and Blackwood engines

Installation Notes and Tips

Verify engine code and application details before installation. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain, since these components work together to keep the chain tight and properly aligned. Confirm right-side placement and mounting-hole dimensions during teardown, and inspect the chain and related valve train parts for wear before reassembly.

Quality Assurance

Cloyes designs and manufactures timing components with advanced materials and validates each part for function and durability. The 9-5393 timing chain guide is built to meet or exceed OEM performance requirements for the listed applications.
