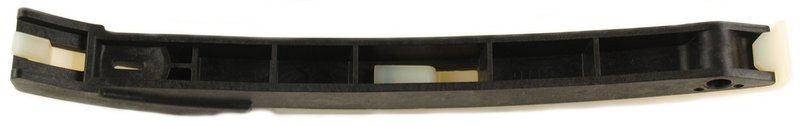

Cloyes 9-5396 Engine Timing Chain Tensioner Guide - Left

Timing Chain Guide for Ford and Lincoln V8 Applications

The Cloyes 9-5396 timing chain tensioner guide is a specific-fit engine timing component for select Ford and Lincoln applications. It is built with a nylon guide surface and bracket support to help maintain proper timing chain tracking in left-side installations.

Cloyes Timing Chain Guide Line

Cloyes timing guides are engineered as OE-style replacement components for timing systems that use a chain between the crankshaft and camshaft. The brand line includes stand-alone guides and kit-based solutions, with CAD-designed construction and material selection focused on consistent fit and function.

Key Features

• Part number 9-5396 timing chain tensioner guide
• Nylon guide material with white/black finish
• Specific-fit design for left-side engine applications
• Shoe included with bracket included
• 10 1/8 in. length, 0.97 in. width, 1.80 in. height
• Single mounting hole with 0.32 in. inside diameter
• Interchange reference: F85Z6M274AA

Detailed Description

Cloyes 9-5396 is an engine timing chain tensioner guide designed for select Ford E-350 Super Duty, F-150, F-250 Super Duty, F-350 Super Duty, Expedition, Excursion, and Lincoln Navigator applications. It serves as the chain track that helps guide timing chain movement in left-side positions, making it a direct replacement choice for timing service on compatible V8 engines. This part cross-references F85Z6M274AA for the same application.

Built from nylon and manufactured to meet or exceed OEM performance requirements, this timing chain guide is designed for quiet operation and consistent durability. Cloyes uses CAD-based design and advanced materials, then tests each part for function and durability to help maintain proper timing system performance. The part number 9-5396 is also listed under interchange 95396.

What This Part Helps Address

• Timing chain noise from a worn guide surface
• Chain tracking issues on the left side of the engine
• Excessive wear in the timing system during service intervals
• Loss of proper chain support after guide deterioration
• Timing service repairs on Ford and Lincoln V8 engines

Installation Notes

Verify engine code, model year, and left-side application before installation. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together to restore timing system integrity. Confirm the mounting hole location and guide dimensions against the original part before assembly.

Quality Assurance

Cloyes manufactures this timing chain tensioner guide using advanced materials and application-specific design standards. Each part is tested for function and durability to support reliable timing system service on the listed Ford and Lincoln vehicles.

Compatible Vehicles

• Fits 2019 Ford E-350 Super Duty, left.
• Fits 1999-2018 Ford E-350 Super Duty, left.
• Fits 2003-2014 Ford E-150, left.
• Fits 2003-2014 Ford E-250, left.
• Fits 2010-2014 Ford Econoline Wagon, left.
• Fits 1997-2014 Ford Expedition, left.
• Fits 2005-2014 Lincoln Navigator, left.
• Fits 1998-1999 Lincoln Navigator, left.
• Fits 1997-2010 Ford F-150, left.
• Fits 1999-2010 Ford F-250 Super Duty, left.
• Fits 1999-2010 Ford F-350 Super Duty, left.
• Fits 2010 Lincoln Mark LT, left.
• Fits 2006-2008 Lincoln Mark LT, left.
• Fits 2005-2009 Ford F-350, left.
• Fits 1999-2003 Ford F-350, left.
• Fits 2007-2008 Ford E-150 Econoline, left.
• Fits 1997-2002 Ford E-150 Econoline, left.
• Fits 2007-2008 Ford E-350 Econoline, left.
• Fits 1997-2000 Ford E-350 Econoline, left.
• Fits 1999-2006 Ford Econoline, left.
• Fits 2003-2005 Ford E-150 Club Wagon, left.
• Fits 2003-2005 Ford E-350 Club Wagon, left.
• Fits 2000-2005 Ford Excursion, left.
• Fits 2004 Ford F-150 Heritage, left.
• Fits 1997-2002 Ford E-150 Econoline Club Wagon, left.
• Fits 1997-2002 Ford E-250 Econoline, left.
• Fits 1997-2002 Ford E-350 Econoline Club Wagon, left.
• Fits 2001 Ford F-250, left.
• Fits 1997-1999 Ford F-250, left.
