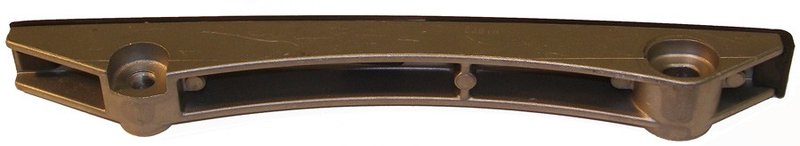

Cloyes 9-5400 Engine Timing Chain Guide - Left Lower

Overview of Cloyes Engine Timing Chain Guide 9-5400

The Cloyes 9-5400 engine timing chain guide is designed specifically for select Chrysler and Dodge models, including the 300, Charger, Concorde, Intrepid, Magnum, Sebring, and Stratus. Constructed from durable nylon and aluminum materials, this chain guide ensures reliable performance and precise timing chain alignment.

• Material: Nylon and aluminum for strength and durability
• Length: 11 inches, Width: 1.02 inches, Height: 1.42 inches
• Includes shoe and mounting bracket for secure installation
• Designed for specific fitment on Chrysler and Dodge vehicles
• Two mounting holes with inside diameters of 0.50 and 0.34 inches
• Non-adjustable, manual adjustment not required

Detailed Product Description

The Cloyes 9-5400 engine timing chain guide is engineered to maintain proper tension and alignment of the timing chain in compatible Chrysler and Dodge engines. Its nylon and aluminum construction provides a balance of lightweight durability and resistance to wear. The included shoe and bracket facilitate a secure fit, ensuring the guide remains stable during engine operation. Measuring 11 inches in length, with a width of 1.02 inches and height of 1.42 inches, this guide is tailored for specific engine configurations found in models such as the Dodge Charger and Chrysler 300. The part number 9-5400 identifies this exact component for accurate replacement and compatibility.

Common Applications and Problem Resolution

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by worn or loose chain guides
• Helps avoid premature wear of timing chain components
• Addresses issues related to engine timing inconsistencies
• Supports proper valve train operation in Chrysler and Dodge vehicles

Installation Notes and Tips

Installation of the Cloyes 9-5400 timing chain guide requires removal of the timing cover and careful alignment with the timing chain. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure the mounting holes align correctly with the engine block, using the two provided holes with diameters of 0.50 and 0.34 inches. Since this guide is non-adjustable, precise positioning during installation is critical for optimal performance. It is recommended to consult the vehicle’s service manual for torque specifications and installation procedures.

Quality Assurance and Warranty

Cloyes manufactures the 9-5400 timing chain guide to meet OEM specifications for Chrysler and Dodge vehicles. The use of nylon and aluminum materials ensures durability under normal operating conditions. While specific warranty details are not provided here, Cloyes products typically come with a limited warranty against manufacturing defects. For warranty information, refer to Cloyes’ official documentation or contact the parts distributor.
