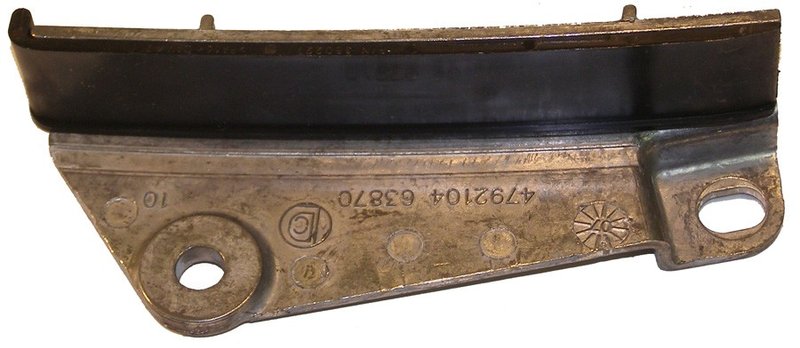

Cloyes 9-5402 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide 9-5402

Cloyes 9-5402 is a specific-fit engine timing chain guide for the right side of select Chrysler and Dodge applications. It uses a nylon/aluminum construction with an included shoe and bracket to help maintain timing chain tracking in the valve train.

Key Features

• Specific-fit engine timing chain guide for the right side
• Nylon/aluminum construction for valve train service
• Shoe included for chain contact surface support
• Bracket included; bolts are not included
• Non-adjustable design with 2 mounting holes
• Dimensions: 5 1/4 in. long, 1.39 in. wide, 2.00 in. high
• Black/gray finish

Product Details

This Cloyes timing chain guide is built to meet or exceed OEM performance requirements and is CAD designed with advanced materials for durability and consistent operation. It is used in timing chain systems that connect the crankshaft and camshaft, helping keep chain movement controlled in engines such as the Chrysler 300, Chrysler Sebring, Dodge Charger, Dodge Magnum, Dodge Stratus, Chrysler Concorde, Chrysler Intrepid, and Dodge Intrepid. This part number, 9-5402, also cross-references Dorman - Conduct-Tite 95402 for the same application.

Common Problems It Can Address

• Timing chain noise from worn guide surfaces
• Chain tracking issues caused by damaged guide material
• Excess chain movement in the right-side timing assembly
• Wear-related valve train service concerns
• Replacement needs during timing chain service on Chrysler and Dodge engines

Installation Notes

Use this guide only on the confirmed right-side applications listed for your vehicle. Cloyes recommends replacing the chain tensioner, sprockets, and guides when servicing the timing chain so the system stays properly aligned and tensioned. Verify mounting hole size, guide length, and engine application before installation.

Quality Assurance

Cloyes manufactures this timing guide using CAD-based design and tested materials, with function and durability checks performed during development to support reliable engine timing service.
