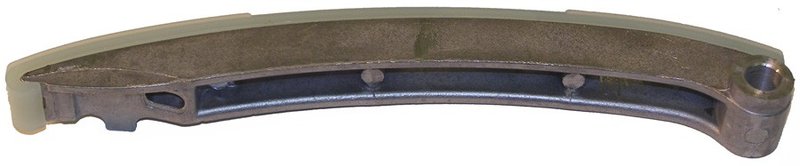

Cloyes 9-5427 Engine Timing Chain Tensioner Guide

Cloyes Timing Chain Tensioner Guide 9-5427

Cloyes 9-5427 is a specific-fit engine timing chain tensioner guide for applications that require a silent-type secondary chain. Built with a nylon/aluminum construction, this guide uses a fixed, non-adjustable design with an included shoe and bracket for stable chain tracking in the valve train.

Fits 1999-2006 Jeep Grand Cherokee, N/A; Fits 2000-2006 Dodge Dakota, N/A; Fits 2000-2006 Dodge Durango, N/A; Fits 2002-2007 Dodge Ram 1500, N/A; Fits 2006 Jeep Commander, N/A; Fits 2006-2007 Mitsubishi Raider, N/A.

Key Features

• Engine timing chain tensioner guide for valve train service
• Nylon/aluminum construction for guided chain contact
• Specific-fit design for listed Dodge, Jeep, and Mitsubishi applications
• Fixed, non-manually adjustable configuration
• Shoe and bracket included
• White/gray finish with 8 3/4 in. length, 0.98 in. width, and 1.58 in. height
• Single mounting hole with 0.39 in. inside diameter

Product Details

This Cloyes timing chain tensioner guide is engineered for secondary chain applications that require a silent-type chain. It serves as the track that helps guide the timing chain between the crankshaft and camshaft, supporting consistent chain routing in the engine timing system. Cloyes manufactures this part using CAD-based design and advanced materials, then tests it for function and durability to meet OEM-level performance requirements. Part number 9-5427 also cross-references 53020910 for the same application.

Common Problems This Part Can Address

• Timing chain noise from a worn guide surface
• Chain tracking issues in the secondary timing system
• Valve train wear caused by degraded guide material
• Improper chain support after timing service
• Fitment issues when replacing a worn OE-style guide on listed vehicles

Installation Notes

Use this guide only on the listed applications that call for a silent-type chain. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system. Verify application details in the catalog before installation, and confirm the engine uses the correct secondary chain configuration.

Quality Assurance

Cloyes designs and tests timing components to meet or exceed OEM performance requirements. The 9-5427 guide is manufactured with advanced materials and validated for function and durability to support reliable timing system operation.
