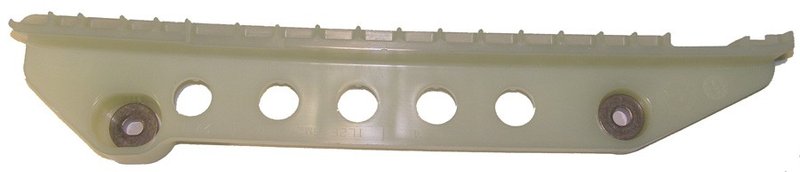

Cloyes 9-5428 Engine Timing Chain Guide - Right

Reliable Timing Chain Guide for Ford, Lincoln, and Mercury Vehicles

The Cloyes Timing Chain Guide 9-5428 is engineered to provide precise chain alignment and durability for select Ford, Lincoln, and Mercury models. Designed specifically for applications such as the Ford F-150, Lincoln Town Car, and Mercury Mountaineer, this nylon guide ensures consistent valve train performance.

• Constructed from durable white nylon material for wear resistance
• Includes shoe and bracket for complete installation
• Measures 11 1/4 inches in length, 1.49 inches in width, and 1.99 inches in height
• Designed for specific fitment with 2 mounting holes (0.30"/0.27" inside diameter)
• Non-adjustable, manual adjustment not required

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide line focuses on providing precise and reliable components for engine valve train systems. This product line emphasizes material quality and exact fitment to maintain proper timing chain tension and alignment. The 9-5428 guide is part of this line, offering a tailored solution for specific Ford, Lincoln, and Mercury models to support engine longevity and performance.

Detailed Product Description

This engine timing chain guide is made from high-quality nylon, chosen for its strength and resistance to wear under continuous chain contact. The included shoe and bracket facilitate secure mounting and stable chain guidance. With exact dimensions and mounting hole specifications, the 9-5428 guide fits specific vehicles such as the Ford Crown Victoria, E-150 Econoline series, and the Mercury Grand Marquis. Its non-adjustable design simplifies installation and ensures consistent chain tension without manual intervention.

Common Applications and Issues Addressed

• Prevents timing chain slack and reduces chain noise
• Minimizes premature wear on timing chain components
• Maintains proper valve timing for engine efficiency
• Replaces worn or damaged timing chain guides in Ford F-150 and Lincoln Town Car
• Supports smooth operation in Mercury Mountaineer and Explorer models

Installation Notes and Tips

Installation requires removal of the timing cover and careful alignment of the guide with the mounting holes. The included bracket and shoe should be securely fastened using the existing bolts, as bolts are not included with this part. Ensure the guide is properly seated to avoid chain misalignment. Refer to vehicle-specific service manuals for torque specifications and detailed procedures.

Quality Assurance and Warranty

The Cloyes Timing Chain Guide 9-5428 is manufactured to meet OEM specifications for fit and function. Made from durable nylon material, it is designed to withstand the rigors of engine operation. While specific warranty details are not provided, Cloyes products typically adhere to industry standards for quality and reliability.
