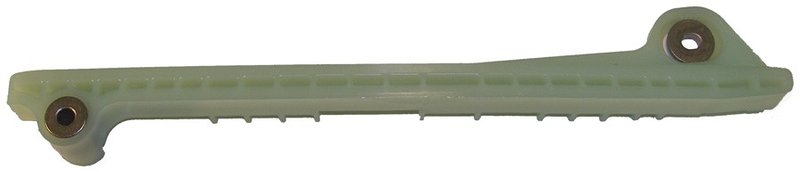

Cloyes 9-5429 Engine Timing Chain Guide - Left

Overview of Cloyes Timing Chain Guide 9-5429

The Cloyes Timing Chain Guide 9-5429 is engineered for specific Ford, Lincoln, and Mercury vehicles, including models like the Crown Victoria, F-150, and Mustang. Designed to maintain proper timing chain alignment, this nylon guide ensures reliable engine valve train performance.

• Constructed from durable white nylon material
• Includes shoe and mounting bracket for secure installation
• Measures 11 1/8 inches in length, 1.13 inches in width, and 1.82 inches in height
• Features two mounting holes with inside diameters of 0.26 and 0.32 inches
• Specific fit for select Ford, Lincoln, and Mercury models
• Non-adjustable, designed for precise factory specifications

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on providing reliable valve train components that maintain timing chain tension and alignment. This guide, part number 9-5429, is crafted to meet exact OEM specifications for specific vehicle applications, ensuring consistent engine timing and reducing wear on the timing chain system.

Detailed Product Description

This engine timing chain guide is made from high-quality nylon, chosen for its strength and resistance to wear under high-temperature engine conditions. The included shoe and bracket facilitate a secure fit, preventing chain slack and reducing noise. With precise dimensions and mounting hole specifications, the 9-5429 guide is designed for direct replacement in vehicles such as the Ford F-150, Lincoln Town Car, and Mercury Mountaineer. Its non-adjustable design ensures it maintains the correct chain path without manual intervention.

Common Applications and Issues Addressed

• Prevents timing chain misalignment and slack
• Reduces engine noise caused by worn or loose guides
• Helps avoid premature timing chain wear or failure
• Maintains proper valve timing for engine performance
• Replaces damaged or worn factory timing chain guides

Installation Notes and Tips

Installation requires removal of the timing cover and careful alignment of the guide with the timing chain. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure mounting holes align correctly with the engine block, and verify chain tension after installation. This guide is not manually adjustable, so precise fitment is critical.

Quality Assurance and Warranty

Cloyes manufactures this timing chain guide to meet or exceed OEM standards for durability and fitment. While specific warranty details are not provided, Cloyes products typically undergo rigorous quality control to ensure reliable engine performance and longevity.
