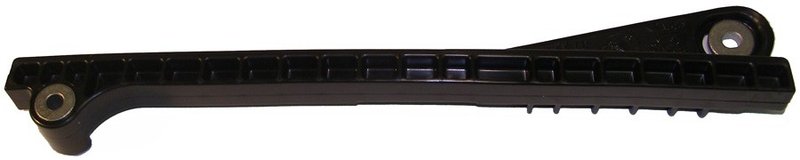

Cloyes 9-5430 Engine Timing Chain Guide - Left

Reliable Timing Chain Guide for Ford and Lincoln Vehicles

The Cloyes Timing Chain Guide 9-5430 is engineered to provide precise chain alignment and durability for select Ford and Lincoln models. Designed specifically for applications such as the Ford F-150 and Lincoln Navigator, this nylon guide ensures consistent valve train performance.

• Constructed from durable black nylon material
• Includes shoe and mounting bracket for secure installation
• Measures 12 inches in length, 1.16 inches in width, and 1.89 inches in height
• Features two mounting holes with inside diameters of 0.32 and 0.26 inches
• Non-adjustable, specific fit for select Ford and Lincoln models

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide line focuses on providing precise, application-specific components for engine valve train systems. This guide is part of that line, designed to maintain proper timing chain tension and alignment without manual adjustment. Its nylon construction and included shoe help reduce wear and noise, contributing to the overall reliability of the engine timing system.

Detailed Product Description

The Cloyes 9-5430 Timing Chain Guide is a non-adjustable, specific-fit component crafted from black nylon to withstand the rigors of engine operation. It includes a shoe and mounting bracket to ensure a secure fit within the valve train assembly. With dimensions tailored to fit select Ford and Lincoln vehicles, this guide supports the timing chain by maintaining proper tension and alignment, which is critical for engine timing accuracy and longevity.

Common Applications and Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces chain noise and vibration
• Helps avoid premature wear of timing components
• Supports consistent engine valve timing
• Addresses timing chain guide wear or damage in Ford E-150 and F-250 models

Installation Notes and Tips

Installation requires removal of the timing cover and careful alignment of the guide with the timing chain. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure mounting holes align properly with the engine block, and verify fitment with your specific Ford or Lincoln model before installation.

Quality Assurance and Warranty

Cloyes manufactures this timing chain guide to meet OEM specifications for durability and fit. While specific warranty details are not provided, Cloyes products typically adhere to industry standards for quality and reliability, making this guide a dependable replacement part for your Ford or Lincoln vehicle.
