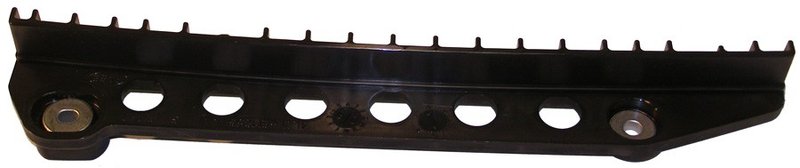

Cloyes 9-5431 Engine Timing Chain Guide - Right

Cloyes Timing Chain Guide 9-5431

The Cloyes 9-5431 timing chain guide is a specific-fit engine timing chain guide for the right side of select Ford and Lincoln applications. Built with a nylon guide surface and integrated shoe, it helps maintain proper chain tracking in high-mileage timing systems.

Compatible with Ford F-150, Expedition, E-150, E-250, E-350 Super Duty, and Lincoln Navigator applications, this guide is designed for engines that require a right-side timing chain guide. Cloyes timing chain guides are CAD designed and manufactured with advanced materials for consistent fit and function.

Key Features

• Engine timing chain guide for the right side
• Nylon construction with black finish
• Shoe included for direct replacement use
• Specific fit for application-matched installation
• Bracket included; bolts not included
• Length: 11 7/8 in., width: 1.45 in., height: 2.07 in.
• Mounting hole quantity: 2

Product Details

Cloyes Timing Chain Guide 9-5431 is part of the Cloyes Timing Chain Guide line, which focuses on application-specific engine timing components. Cloyes designs these parts to meet or exceed OEM performance requirements and tests each guide for function and durability. When servicing a timing chain system, replacing the chain tensioner, sprockets, and guides together helps restore proper chain control and chain tension.

This part cross-references Ford OE 4L3Z6M256AA for the same application.

Common Problems This Part Can Address

• Timing chain noise from a worn guide surface
• Chain misalignment on the right side of the engine
• Excessive chain movement caused by guide wear
• Timing system service needs on high-mileage Ford and Lincoln engines
• Replacement of a damaged or deteriorated nylon guide

Installation Notes

Verify engine application and right-side position before installation. Inspect the timing chain, tensioner, and sprockets for wear during service, since these components work together to control chain movement. Confirm mounting hole size and guide dimensions against the original part before assembly.

Quality Assurance

Cloyes manufactures this timing chain guide using CAD-designed engineering and advanced materials, then tests it for function and durability to support consistent engine timing performance.
