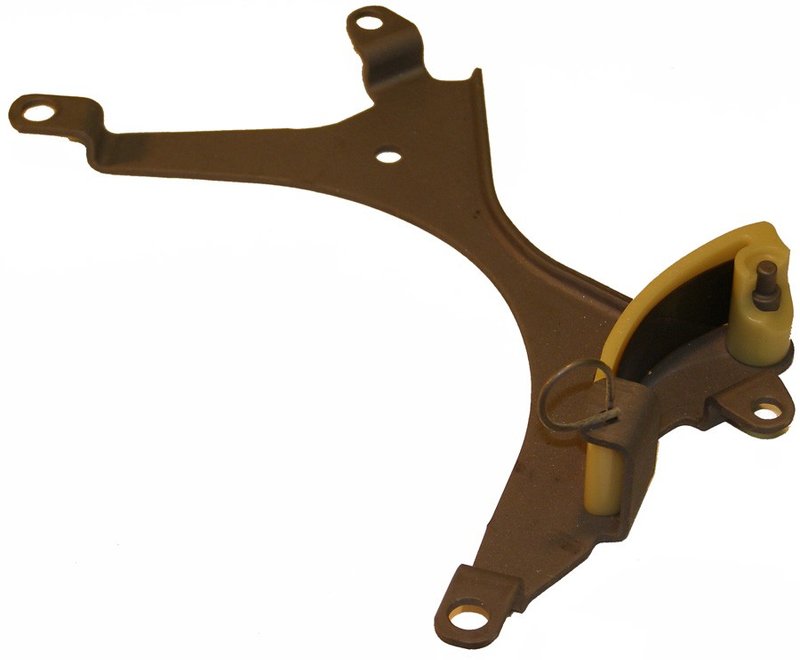

Cloyes 9-5452 Engine Timing Chain Tensioner - Upper

Cloyes 9-5452 Timing Chain Tensioner

Cloyes 9-5452 is an engine timing chain tensioner built for specific GM applications that require stable chain control at the upper timing drive. It uses a blade-style design with nylon and steel construction, a spring, and an activation pin to maintain proper chain tension during operation.

Compatible With 1999-2003 Chevrolet Astro, Blazer, Express 1500, Express 2500, S10, and Silverado 1500; 1999-2003 GMC Jimmy, Safari, Savana 1500, Savana 2500, Sierra 1500, and Sonoma; and 1999-2001 Oldsmobile Bravada for balance shaft applications. This part number is also referenced as 9-5452 in Cloyes catalogs.

Key Features

• Blade-style timing chain tensioner for specific upper engine applications
• Nylon/steel construction for controlled chain contact and durability
• Spring included with activation pin design
• Shoe included for proper chain interface
• Specific fit design with 4 mounting holes
• Bolts included for the listed application
• Yellow/gray finish for easy identification during service

Detailed Description

This Cloyes timing chain tensioner is engineered to maintain the correct tension on the timing chain, helping the valvetrain stay synchronized under normal engine operation. Cloyes designs and manufactures its timing components using CAD-based development and advanced materials, then tests each part for function and durability before release. The 9-5452 is a specific-fit replacement for upper timing chain service on select Chevrolet, GMC, and Oldsmobile vehicles, including Chevrolet Astro, GMC Safari, and Chevrolet Silverado 1500 applications.

Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system. This approach addresses the wear points that keep the chain aligned and properly tensioned. This part cross-references Nissens 95452 for the same application.

Common Problems This Part Addresses

• Timing chain slack that can lead to noise at startup or during operation
• Chain vibration caused by worn tensioning components
• Improper chain control in upper timing drive service
• Wear-related timing system noise in high-mileage engines
• Service issues when replacing a timing chain without renewing the tensioner

Installation Notes and Tips

Verify engine code and application details before installation, since this tensioner is specific to listed vehicles and positions. Inspect the timing chain, guides, and sprockets for wear before assembly, and replace related components as needed during timing service. Confirm the activation pin and mounting points are positioned correctly during installation to ensure proper chain tension on the upper timing drive.

Quality Assurance

Cloyes states that its timing chain tensioners meet or exceed OEM performance requirements. The 9-5452 is CAD designed, manufactured with advanced materials, and tested for function and durability to support consistent service performance in the listed Chevrolet, GMC, and Oldsmobile applications.
