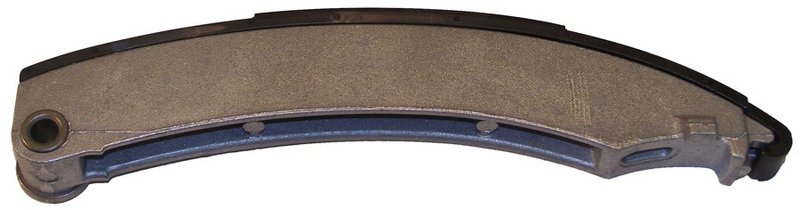

Cloyes 9-5456 Engine Timing Chain Tensioner Guide

Cloyes Timing Chain Tensioner Guide 9-5456

Cloyes 9-5456 is an engine timing chain tensioner guide built for specific Chrysler, Dodge, Jeep, Ram, and Mitsubishi applications. It uses a nylon/aluminum construction with a black/gray finish, a shoe included, and a fixed, non-adjustable design for direct replacement service.

Key Features

• Engine timing chain tensioner guide for specific fit applications
• Nylon/aluminum construction for guided chain contact
• Shoe included with bracket included
• Non-adjustable, manually adjustable: no
• Black/gray finish
• Length: 9 in.; width: 1.01 in.; height: 2.08 in.
• Mounting hole quantity: 1; mount hole inside diameter: 0.32 in.
• Interchanges with 95456 and 53021292AB

Detailed Description

This Cloyes timing chain guide is designed to keep the timing chain tracking correctly between the crankshaft and camshaft in engines that use a tensioner guide setup. Cloyes manufactures the part using CAD-designed construction and advanced materials, then tests it for function and durability to help maintain quiet, maintenance-free operation. Part number 9-5456 is a direct-fit timing chain tensioner guide for select Jeep Liberty, Dodge Nitro, Dodge Dakota, Dodge Ram 1500, Jeep Commander, Jeep Grand Cherokee, Dodge Durango, Ram 1500, Ram Dakota, and Mitsubishi Raider applications.

This part cross-references 95456 and 53021292AB for the same application.

Vehicle Fitment

• Fits 2002-2013 Jeep Liberty, N/A
• Fits 2007-2012 Dodge Nitro, N/A
• Fits 2011-2012 Ram 1500, N/A
• Fits 2004-2011 Dodge Dakota, N/A
• Fits 2011 Ram Dakota, N/A
• Fits 2002-2010 Dodge Ram 1500, N/A
• Fits 2006-2010 Jeep Commander, N/A
• Fits 2005-2010 Jeep Grand Cherokee, N/A
• Fits 2004-2009 Dodge Durango, N/A
• Fits 2006-2009 Mitsubishi Raider, N/A

Installation Notes and Tips

Replace the timing chain tensioner, sprockets, and guide components together when servicing the chain. Verify application details in the catalog before installation, and confirm the guide mounting points, hole diameter, and overall dimensions match the engine configuration. Part number 9-5456 is a specific-fit component, so correct engine identification is important before assembly.

Quality Assurance

Cloyes designs and manufactures timing components using advanced materials and validates each part for function and durability. The guide is built to meet or exceed OEM performance requirements for the listed applications.
