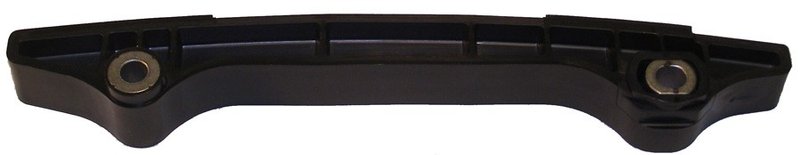

Cloyes 9-5457 Engine Timing Chain Guide - Right

Reliable Engine Timing Chain Guide for Dodge, Jeep, Mitsubishi, and Ram

The Cloyes 9-5457 engine timing chain guide is designed specifically for select Dodge, Jeep, Mitsubishi, and Ram models. Constructed from durable nylon, this chain guide ensures consistent timing chain alignment and smooth engine operation.

• Material: High-quality nylon for durability and wear resistance
• Length: 9 3/4 inches, Width: 1.01 inches, Height: 1.62 inches
• Includes shoe and mounting bracket for secure installation
• Designed for specific fitment on Dodge Ram 1500, Jeep Grand Cherokee, Mitsubishi Raider, and more
• Two mounting holes with inside diameters of 0.32" and 0.37" for precise attachment

Durable Nylon Construction and Precise Fitment

The Cloyes 9-5457 timing chain guide is engineered from nylon, a material known for its strength and resistance to engine heat and wear. This guide is not manually adjustable but comes with a pre-installed shoe and mounting bracket to maintain proper chain tension and alignment. Measuring 9 3/4 inches in length, 1.01 inches in width, and 1.62 inches in height, it fits specific engine configurations on Dodge Ram 1500, Jeep Commander, Dakota, Durango, Grand Cherokee, Liberty, Nitro, Mitsubishi Raider, and Ram 1500 models. The two mounting holes ensure a secure fit, with inside diameters of 0.32" and 0.37" to accommodate factory hardware.

Common Applications and Problem Resolution

• Prevents timing chain slack and reduces chain noise
• Helps avoid engine timing issues caused by worn or damaged guides
• Reduces risk of chain skipping or jumping teeth on the sprockets
• Maintains proper valve timing for optimal engine performance
• Addresses wear-related failures in original timing chain guides

Installation Notes and Tips

Installation of the Cloyes 9-5457 timing chain guide requires removal of the timing cover and careful alignment with the engine block. The included mounting bracket and shoe simplify the process, but bolts are not included and must be sourced separately. Ensure the mounting holes align correctly with the engine’s factory points. It is recommended to inspect the timing chain and related components during installation to confirm overall system condition.

Quality Assurance and Warranty Information

Cloyes timing chain guides are manufactured to meet or exceed OEM specifications for fit and function. The nylon material provides reliable wear resistance under normal operating conditions. While specific warranty details are not provided here, Cloyes products typically come with a limited warranty against defects in material and workmanship. For detailed warranty information, consult the product documentation or manufacturer.
