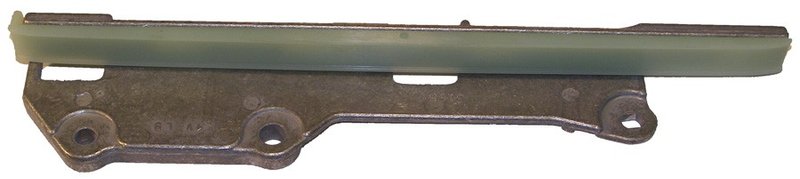

Cloyes 9-5459 Engine Timing Chain Guide - Left

Cloyes Timing Chain Guide for Lincoln V8 Engines

Cloyes 9-5459 is a specific-fit engine timing chain guide for select Lincoln applications. It is built with a nylon/aluminum construction and includes the shoe and bracket needed for proper chain tracking on the left side of the engine.

Key Features

• Specific-fit engine timing chain guide for select Lincoln Continental and Lincoln Mark VIII applications
• Nylon/aluminum construction for controlled chain contact and durability
• Shoe included for direct replacement service
• Bracket included for proper mounting alignment
• White/gray finish with 11 1/8 in. length, 1.11 in. width, and 2.10 in. height
• Three mounting holes with inside diameters of 0.26 in., 0.34 in., and 0.31 in.
• Not manually adjustable

Product Details

The Cloyes 9-5459 timing chain guide is engineered to meet or exceed OEM performance requirements and is CAD designed using advanced materials. As a left-side engine timing chain guide, it helps maintain correct chain path between the crankshaft and camshaft in 1995-2002 Lincoln Continental and 1993-1998 Lincoln Mark VIII models. Cloyes timing guides are tested for function and durability to support quiet, maintenance-free operation. This part cross-references Ford F3LY6K297A for the same application.

What This Part Helps Address

• Timing chain noise from worn guide surfaces
• Chain tracking issues caused by damaged or degraded guide material
• Improper chain alignment on the left side of the engine
• Wear-related timing system service on Lincoln Continental and Lincoln Mark VIII engines
• Restoration of stable chain routing after timing component replacement

Installation Notes and Tips

Fits 1995-2002 Lincoln Continental, left. Fits 1993-1998 Lincoln Mark VIII, left. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together because these components work together to keep the chain tight and properly supported. Verify application details in the catalog before installation and confirm mounting hole alignment, guide length, and left-side placement.

Quality Assurance

Cloyes manufactures this timing chain guide with CAD-designed construction and advanced materials, then tests each part for function and durability to help ensure consistent performance in service.
