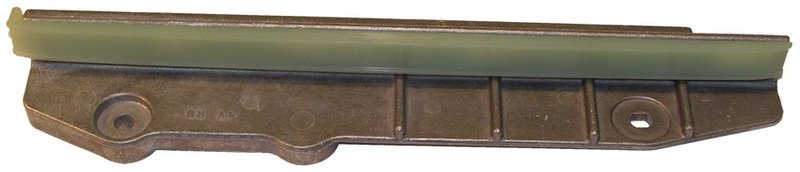

Cloyes 9-5461 Engine Timing Chain Guide - Right

Reliable Engine Timing Chain Guide for Ford, Lincoln, and Mercury

The Cloyes 9-5461 engine timing chain guide is designed specifically for select Ford, Lincoln, and Mercury models, including the Aviator, Continental, Marauder, Mark VIII, and Mustang. Crafted from durable nylon and aluminum materials, this chain guide ensures consistent performance and longevity in your vehicle's valve train system.

• Material: Nylon and aluminum construction for strength and durability
• Length: 11 inches, Width: 1.30 inches, Height: 1.71 inches
• Includes shoe and mounting bracket for secure installation
• Designed for specific fitment with 2 mounting holes (0.29"/0.31" inside diameter)
• Non-adjustable, manual adjustment not required

Durable Construction and Precise Fitment

The Cloyes 9-5461 timing chain guide features a combination of nylon and aluminum materials that provide a balance of lightweight design and structural integrity. Its white and gray color coding helps identify the part during installation. This guide is engineered to fit specific Ford, Lincoln, and Mercury models, ensuring proper alignment and tension of the timing chain. The included shoe and bracket facilitate a secure and stable mounting, while the two mounting holes with precise diameters allow for exact placement within the engine assembly.

Compatible Vehicles and Applications

This engine timing chain guide is compatible with the following vehicles:

• Ford Mustang
• Lincoln Aviator
• Lincoln Continental
• Mercury Marauder
• Lincoln Mark VIII

It is designed to maintain proper timing chain tension and alignment, which is critical for engine performance and longevity.

Common Issues Addressed by This Timing Chain Guide

• Prevents timing chain slack and reduces chain noise
• Minimizes wear on timing chain and sprockets
• Helps avoid engine timing misalignment
• Reduces risk of chain jumping or skipping teeth
• Supports smooth engine operation and timing accuracy

Installation Notes and Tips

Installation of the Cloyes 9-5461 timing chain guide requires basic mechanical knowledge and proper tools. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure the mounting holes align correctly with the engine block, and verify the inside diameter of the mounting holes (0.29"/0.31") matches your hardware. Since this guide is non-adjustable, precise placement is essential for optimal chain tension.

Quality Assurance and Warranty

Cloyes manufactures this timing chain guide to meet or exceed OEM specifications for durability and fitment. The nylon and aluminum materials are selected for resistance to wear and heat. While specific warranty details are not provided, Cloyes products typically come with a limited warranty against manufacturing defects. Always consult product documentation or contact the manufacturer for warranty information.
