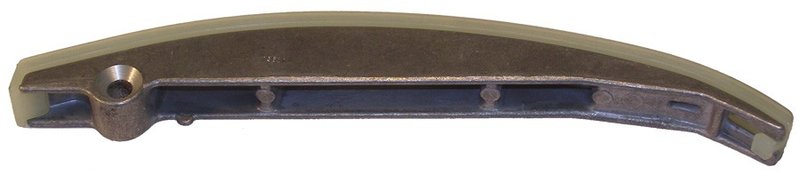

Cloyes 9-5462 Engine Timing Chain Tensioner Guide - Left

Cloyes Timing Chain Tensioner Guide 9-5462

Cloyes 9-5462 is a specific-fit engine timing chain tensioner guide for the left side of select Ford, Lincoln, and Mercury applications. It is built with a nylon/aluminum construction, a guide shoe, and an attached bracket to help maintain timing chain tracking in the valve train.

Key Features

• Specific-fit engine timing chain tensioner guide
• Nylon/aluminum construction for valve train use
• Guide shoe included
• Bracket included
• White/gray finish
• Length: 9 5/8 in.; width: 0.75 in.; height: 1.82 in.
• Single mounting hole with 0.32 in. inside diameter
• Not manually adjustable

Detailed Description

This Cloyes timing chain guide is designed for the crankshaft-to-camshaft timing system and helps keep the chain aligned as it moves through the engine. Cloyes manufactures this part using CAD-based design and advanced materials, then tests it for function and durability to support consistent operation in demanding engine environments. Part number 9-5462 is a direct-fit replacement for select left-side applications, including 2003-2005 Lincoln Aviator, 2003-2004 Ford Mustang, 2003-2004 Mercury Marauder, 1995-2002 Lincoln Continental, and 1993-1998 Lincoln Mark VIII. This part cross-references Ford/Motorcraft 1R3Z6L253AA for the same application.

Common Problems This Part Can Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the valve train
• Excessive wear on timing components
• Loss of proper chain tracking on the left side
• Service replacement during timing chain repair

Installation Notes and Tips

Verify engine application and left-side position before installation. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together so the timing system components work as a matched set. Confirm all mounting points and guide dimensions against the vehicle’s service information before assembly.

Quality Assurance

Cloyes designs and manufactures timing components with OEM-level performance targets in mind, using advanced materials and application-specific engineering. Each part is tested for function and durability to help deliver reliable valve train operation.
