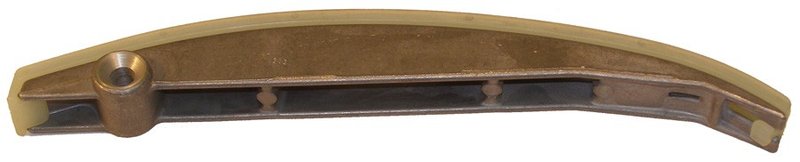

Cloyes 9-5463 Engine Timing Chain Tensioner Guide - Right

Cloyes Timing Chain Tensioner Guide 9-5463

Cloyes 9-5463 is a specific-fit engine timing chain tensioner guide for the right side of select Ford, Lincoln, and Mercury applications. It is built with a nylon/aluminum construction, a guide shoe, and a bracket to help maintain timing chain alignment in the valve train.

Key Features

• Specific-fit timing chain tensioner guide for select applications
• Nylon/aluminum construction for the timing chain track surface and support structure
• Guide shoe included
• Bracket included
• White/gray finish
• Length: 9 5/8 in.; width: 0.73 in.; height: 1.75 in.
• Single mounting hole design with 0.32 in. inside diameter
• Non-adjustable, manually adjustable: No

Detailed Description

This Cloyes timing chain guide is engineered for the engine timing system, where it helps route the chain between the crankshaft and camshaft. The 9-5463 is a right-side guide designed for specific-fit applications, including 2003-2005 Lincoln Aviator, 2003-2004 Ford Mustang, 2003-2004 Mercury Marauder, 1995-2002 Lincoln Continental, and 1993-1998 Lincoln Mark VIII. If you are replacing a worn timing chain guide on a Lincoln Mark VIII, Lincoln Continental, Ford Mustang, or Lincoln Aviator, this part number 9-5463 provides the correct application-specific fitment.

Cloyes manufactures this guide using CAD-designed components and advanced materials, with testing focused on function and durability. This part cross-references NGK 95463 for the same application.

Common Problems This Part Addresses

• Timing chain noise from a worn guide surface
• Chain misalignment in the valve train
• Excessive wear on the timing chain guide track
• Loss of proper chain support on the right side of the engine
• Timing system service needs during chain replacement

Installation Notes and Tips

Verify engine application and right-side position before installation. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together because these components work together to keep the chain properly supported and tensioned. Confirm all mounting points and guide dimensions against the vehicle-specific catalog listing before assembly.

Quality Assurance

Cloyes designs and manufactures timing components to meet or exceed OEM performance requirements, with extensive function and durability testing performed on the part. The 9-5463 is built for a quiet, maintenance-free timing system experience in the listed applications.
