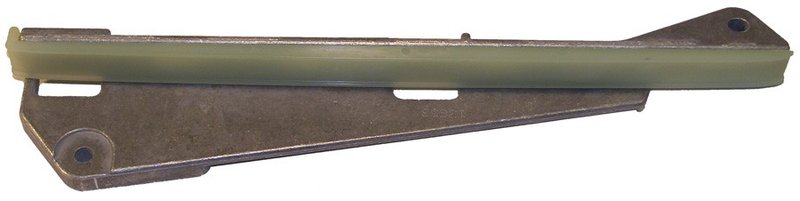

Cloyes 9-5464 Engine Timing Chain Guide - Left
| Brand | Cloyes 9-5464 |
|---|---|
| Position | Left |
| Adjustable | No |
| Bolts Included | No |
| Bracket Included | Yes |
| Chain Type | Chain Guide |
| Color | White/Gray |
| Height | 2.06" |
| Length | 11 1/8" |
| Manually Adjustable | No |
| Material | Nylon/Aluminum |
| Mount Hole Inside Diameter | 0.25"/0.29: |
| Mounting Hole Quantity | 2.0 |
| Shoe Included | Yes |
| Universal Or Specific Fit | Specific |
| Width | 1.09" |
| Fits | Lincoln, Ford, and Mercury · 7 vehicles |
OE performance requirements. Engineered to meet or exceed OEM standards for dependable timing chain control.
CAD designed. Advanced materials and tested durability help deliver quiet, maintenance-free operation.
Chain guide. Serves as a track to keep the timing chain aligned and properly supported.
Cross-references 2C5Z6K297AA and 95464 for the same application. See all 2.
Cloyes Timing Chain Guide for Left-Side Applications
The Cloyes 9-5464 engine timing chain guide is a specific-fit valve train component for select Ford, Lincoln, and Mercury applications. It is built with a nylon/aluminum construction and includes the guide shoe and bracket for a direct replacement on the left side.
Fits 2003-2005 Lincoln Aviator, left. Fits 2003-2004 Ford Mustang, left. Fits 2003-2004 Mercury Marauder, left.
Key Features
- Brand: Cloyes
- Part number: 9-5464
- Engine timing chain guide for chain-guided valve train systems
- Nylon/aluminum construction for controlled chain contact
- Shoe included for the guide surface
- Bracket included for application-specific mounting
- Specific fit, not universal
- White/gray finish
- Mounting hole quantity: 2
Product Details
This Cloyes timing chain guide is engineered to route and stabilize the timing chain between the crankshaft and camshaft. Cloyes manufactures the part using CAD-based design and advanced materials, then tests it for function and durability to help maintain consistent timing system operation. The 9-5464 is a left-side guide for the 2003-2005 Lincoln Aviator, 2003-2004 Ford Mustang, and 2003-2004 Mercury Marauder.
This part cross-references 2C5Z6K297AA and 95464 for the same application.
Common Timing System Issues
- Chain noise from a worn guide surface
- Timing chain movement caused by guide wear
- Uneven chain tracking in the valve train
- Replacement needs during timing chain service
- Fitment-specific left-side guide failure
Installation Notes
Verify engine application and left-side position before installation. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain, since these components work together to keep chain tension and alignment consistent. Confirm mounting hole size and guide dimensions against the original part before assembly.
Quality Assurance
Cloyes designs and manufactures timing components to meet or exceed OEM performance requirements. Each guide is extensively tested for function and durability to support reliable timing system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Lincoln | Aviator | 4.6L | V8 | Left | — |
| 2004 | Ford | Mustang | 4.6L | V8 | Left | — |
| 2004 | Lincoln | Aviator | 4.6L | V8 | Left | — |
| 2004 | Mercury | Marauder | 4.6L | V8 | Left | — |
| 2003 | Ford | Mustang | 4.6L | V8 | Left | — |
| 2003 | Lincoln | Aviator | 4.6L | V8 | Left | — |
| 2003 | Mercury | Marauder | 4.6L | V8 | Left | — |
