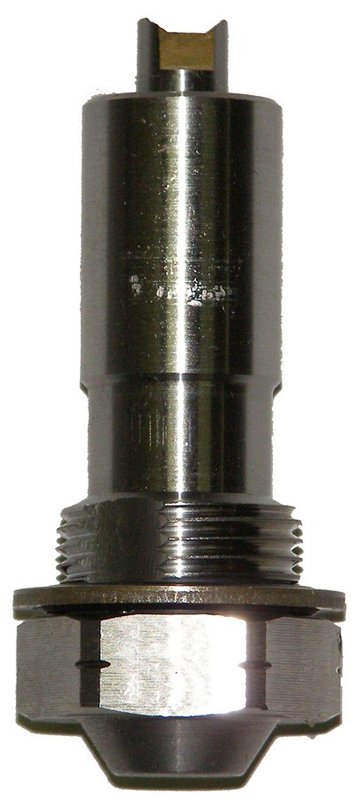

Cloyes 9-5481 Engine Timing Chain Tensioner - Right Upper

Cloyes 9-5481 Timing Chain Tensioner

Cloyes 9-5481 is an engine timing chain tensioner built for specific GM and Saab applications that use a right upper chain position. It is designed with steel construction, a hydraulic/spring chain type, and an included seal and spring for a precise OE-style replacement.

For drivers servicing a Chevrolet Malibu, Equinox, or GMC Terrain, this timing chain tensioner helps restore proper chain tension and timing system control. Cloyes 9-5481 is engineered to meet or exceed OEM performance requirements and is cataloged for application-specific fitment.

Key Features

• Engine timing chain tensioner for specific right upper applications
• Steel construction for durability in the valve train system
• Hydraulic/spring chain type
• Includes gasket or seal and spring
• Specific fit design, not universal
• CAD designed and manufactured using advanced materials
• Cross-reference part numbers: 95481, 12608580

Detailed Description

This Cloyes timing chain tensioner is used in engine timing systems where maintaining correct chain tension is critical to camshaft timing and quiet operation. The hydraulic/spring design helps keep the timing chain properly loaded during engine operation, while the steel body supports long-term durability. It is a direct-fit style component for a wide range of vehicles including Chevrolet Malibu, Chevrolet Equinox, GMC Terrain, Buick Regal, and Saab 9-3 applications. Part number 9-5481 is also referenced as 95481 and 12608580 for the same application.

Cloyes recommends replacing the chain tensioner, sprockets, and guides when servicing the timing chain, since these parts work together to keep the chain aligned and tight. This part is listed for right upper positions across the covered applications, including 2010-2017 Chevrolet Equinox, 2010-2017 GMC Terrain, and 2004-2014 Chevrolet Malibu.

What It Helps Fix

• Timing chain slack or loss of chain tension
• Rattling or noise from the timing system
• Incorrect camshaft timing caused by worn tensioning components
• Wear in the chain tensioner seal or spring assembly
• Timing system service needs on right upper applications

Installation Notes and Tips

Verify engine code, model year, and right upper position before installation. This is a specific-fit component, so application matching matters for proper operation. When replacing the timing chain, inspect the guides and sprockets at the same time and follow the vehicle service procedure for timing alignment and tensioner setup.

Quality Assurance

Cloyes designs and manufactures timing components using advanced materials and tests each part for function and durability. This tensioner is built to meet or exceed OEM performance requirements for the listed applications.
