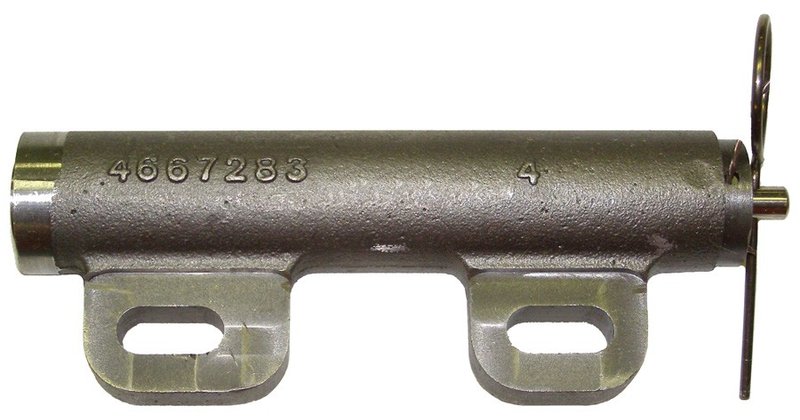

Cloyes 9-5499 Engine Timing Belt Tensioner - Front

Overview of Cloyes Timing Belt Tensioner 9-5499

The Cloyes Timing Belt Tensioner 9-5499 is engineered for precise tension control in engine timing systems. Designed specifically for Chrysler, Dodge, Mitsubishi, and Plymouth vehicles, this tensioner ensures reliable valve train performance in models like the Avenger, Breeze, Eclipse, Neon, Sebring, and Stratus.

• Cast material construction for durability
• Hydraulic/spring chain type for consistent tension
• Includes pulley and spring for complete assembly
• Activation pin type for reliable operation
• Specific fit for select Chrysler, Dodge, Mitsubishi, and Plymouth models
• Dimensions: 5.17" length, 1.92" width, 1" height
• Mounting with two holes, no bolts included
• Non-adjustable, manually set tensioner

Details on Cloyes Timing Belt Tensioner Product Line

The Cloyes Timing Belt Tensioner product line focuses on delivering precise and reliable tensioning solutions for engine timing belts. This line features components designed to maintain optimal belt tension through hydraulic and spring mechanisms, reducing wear and improving engine timing accuracy. The 9-5499 model exemplifies this approach with its cast construction and integrated pulley, tailored for specific vehicle applications.

Technical Description and Features

The Cloyes 9-5499 timing belt tensioner is constructed from cast material, providing strength and resistance to engine environment stresses. It operates using a hydraulic/spring chain type mechanism, which maintains consistent tension without manual adjustment. The tensioner includes a pulley and spring, activated by an activation pin, ensuring smooth and reliable belt engagement. Its dimensions—5.17 inches in length, 1.92 inches in width, and 1 inch in height—are designed to fit precisely within the valve train assembly of compatible vehicles. The tensioner mounts using two holes with a 0.73-inch inside diameter, though bolts are not included with the part.

Compatible Vehicles and Applications

• Chrysler Avenger
• Dodge Breeze
• Mitsubishi Eclipse
• Dodge Neon
• Chrysler Sebring
• Dodge Stratus

This timing belt tensioner is intended for use in maintaining proper timing belt tension, which is critical for engine valve train operation and overall engine performance.

Common Issues Addressed by This Timing Belt Tensioner

• Eliminates slack in the timing belt to prevent skipping teeth
• Reduces belt noise caused by improper tension
• Prevents premature belt wear and potential engine damage
• Maintains consistent timing belt alignment under varying engine conditions
• Supports smooth engine timing for optimal performance

Installation Notes and Tips

Installation of the Cloyes 9-5499 timing belt tensioner requires proper alignment with the engine’s valve train components. Since the tensioner is not manually adjustable, ensure the activation pin mechanism is functioning correctly during installation. Use the two mounting holes for secure attachment; note that bolts are not included and must be sourced separately. It is recommended to replace the timing belt simultaneously to ensure system integrity.

Quality Assurance and Warranty

Cloyes timing belt tensioners are manufactured to meet OEM specifications, ensuring compatibility and durability. The cast material and hydraulic/spring design contribute to long service life under normal operating conditions. Warranty details should be confirmed with the parts distributor or manufacturer, as they may vary by region and application.
