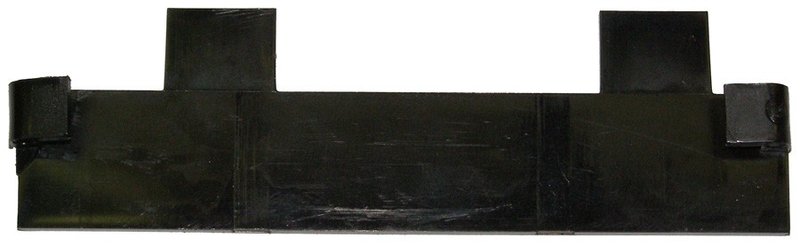

Cloyes 9-5503 Engine Timing Chain Guide - Upper

Overview of Cloyes Timing Chain Guide 9-5503

The Cloyes Timing Chain Guide 9-5503 is designed specifically for Nissan vehicles including the Altima, Frontier, NV350 Urvan, Sentra, and X-Trail. Made from durable nylon, this engine timing chain guide ensures reliable performance and precise chain alignment for optimal valve train operation.

• Constructed from high-quality nylon material for durability
• Includes shoe for smooth chain movement
• Measures 4 inches in length, 1.21 inches in width, and 0.28 inches in height
• Designed as a specific fit for select Nissan models
• Black color for corrosion resistance and wear visibility

Detailed Product Description

The Cloyes Timing Chain Guide 9-5503 is part of the Cloyes Timing Chain Guide product line, which focuses on providing precise and reliable components for engine valve train systems. This guide is engineered to maintain proper tension and alignment of the timing chain, reducing wear and preventing chain slippage. Its nylon construction offers a balance of strength and low friction, contributing to quieter engine operation and extended component life. The included shoe enhances chain guidance and reduces vibration during engine cycles.

Compatible Nissan Models and Applications

This timing chain guide is compatible with a range of Nissan vehicles, including the Altima, Frontier, NV350 Urvan, Sentra, and X-Trail. It is designed as a specific fit part, ensuring proper installation and function within the engine timing system of these models. The part number 9-5503 should be referenced to confirm compatibility with your vehicle’s engine configuration.

Common Issues Addressed by This Timing Chain Guide

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by chain vibration
• Minimizes premature wear of timing chain components
• Helps avoid engine timing errors and potential damage
• Supports smooth valve train operation for consistent engine performance

Installation Notes and Tips

Installation of the Cloyes Timing Chain Guide 9-5503 requires proper engine disassembly to access the timing chain area. Since bolts and brackets are not included, retain original hardware or source compatible fasteners. Ensure the guide is positioned correctly to maintain chain tension and alignment. It is recommended to inspect the timing chain and related components during installation for signs of wear or damage.

Quality Assurance and Warranty

Cloyes manufactures the Timing Chain Guide 9-5503 to meet OEM specifications for fit and function. The nylon material and included shoe are designed for durability under normal operating conditions. While specific warranty details are not provided here, Cloyes products typically come with a limited warranty against manufacturing defects. Verify warranty terms with the supplier or manufacturer documentation.
