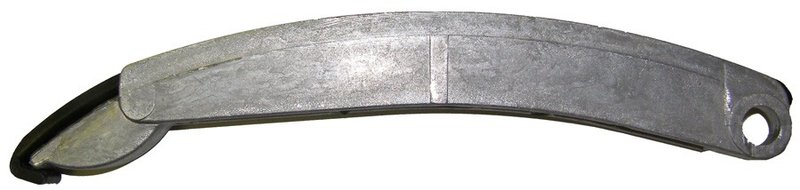

Cloyes 9-5504 Engine Timing Chain Tensioner Guide - Right

Cloyes 9-5504 Timing Chain Guide

The Cloyes 9-5504 engine timing chain tensioner guide is a specific-fit replacement for select GM and related applications with a right-side timing chain guide. Built from nylon and aluminum, it is designed to provide a stable chain track and consistent chain control in the valve train.

Use this timing chain guide when servicing the timing system on vehicles such as the Chevrolet Colorado, GMC Canyon, and Hummer H3. Cloyes 9-5504 is engineered to meet or exceed OEM performance requirements and is manufactured with CAD-designed materials for dependable operation.

Key Features

• Specific-fit engine timing chain guide for the right side
• Nylon/aluminum construction for guided chain contact and support
• Yellow/gray finish for easy visual identification during service
• Bracket included; shoe included
• 9-inch length with 0.70-inch width and 1.84-inch height
• Single mounting hole design with 0.46-inch inside diameter
• Interchanges with part numbers 95504 and 12568766

Detailed Description

Cloyes 9-5504 is an engine timing chain tensioner guide for the right side of the timing system. It is built for specific applications and uses a nylon/aluminum design to help maintain proper chain tracking between the crankshaft and camshaft. This part is a direct service option for timing chain repairs on Chevrolet Colorado, GMC Canyon, Hummer H3, and other listed applications.

Cloyes manufactures timing guides with advanced materials and application-focused engineering. The 9-5504 part number is also referenced as 95504 and 12568766 for the same application. When replacing a timing chain, Cloyes recommends inspecting and replacing related chain components as needed, including the tensioner, sprockets, and guides.

What It Helps Address

• Timing chain noise from worn guide surfaces
• Chain movement caused by guide wear or damage
• Valve timing issues related to chain tracking problems
• Service needs on right-side timing chain guide applications
• Replacement of a damaged or deteriorated OEM-style guide

Installation Notes and Tips

Verify engine application and right-side position before installation. Inspect the timing chain, tensioner, and sprockets during service, since worn related components can affect guide life and chain control. Follow the vehicle service procedure for timing system alignment and torque specifications.

Fits 2004-2012 Chevrolet Colorado, right. Fits 2004-2012 GMC Canyon, right. Fits 2006-2010 Hummer H3, right. Fits 2009-2010 Hummer H3T, right. Fits 2002-2009 Chevrolet Trailblazer, right. Fits 2002-2009 GMC Envoy, right. Fits 2005-2009 Saab 9-7x, right. Fits 2003-2008 Isuzu Ascender, right. Fits 2007-2008 Isuzu i-290, right. Fits 2007-2008 Isuzu i-370, right. Fits 2004-2007 Buick Rainier, right. Fits 2002-2006 Chevrolet Trailblazer EXT, right. Fits 2002-2006 GMC Envoy XL, right. Fits 2006 Isuzu i-280, right. Fits 2006 Isuzu i-350, right. Fits 2004-2005 GMC Envoy XUV, right. Fits 2002-2004 Oldsmobile Bravada, right.

Quality Assurance

Cloyes designs and tests timing components for function and durability, with manufacturing focused on OEM-level fit and performance requirements. This part is built for application-specific service in the timing chain system.
