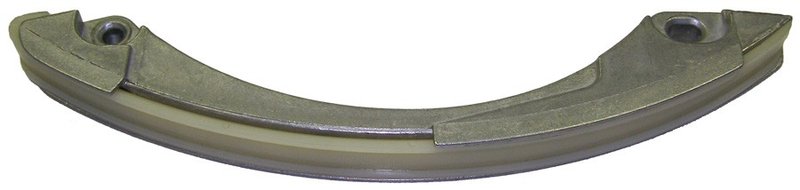

Cloyes 9-5506 Engine Timing Chain Guide - Left

Reliable Engine Timing Chain Guide for Select GM and Isuzu Models

The Cloyes 9-5506 engine timing chain guide is designed to provide precise chain alignment and durability for specific Buick, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile, and Saab vehicles. Engineered with nylon and aluminum materials, this timing chain guide ensures consistent performance in demanding engine environments.

• Constructed from durable nylon and aluminum for strength and wear resistance
• Includes shoe and bracket for complete installation
• Specific fitment for models like Chevrolet Trailblazer, GMC Envoy, and Isuzu Ascender
• Dimensions: 9 7/8" length, 0.79" width, 2.25" height
• Two mounting holes with inside diameters of 0.25" and 0.37" for secure attachment
• Color-coded yellow/gray for easy identification during installation

Detailed Product Description

The Cloyes 9-5506 engine timing chain guide is a critical component in the valve train system, designed to maintain proper tension and alignment of the timing chain. Made from a combination of nylon and aluminum, this guide balances lightweight construction with structural integrity to reduce wear and extend engine life. The included shoe and bracket facilitate a secure fit, while the two mounting holes ensure stable installation. This part is specifically engineered for compatibility with select models such as the Buick Rainier, Chevrolet Colorado, GMC Canyon, Hummer H3, and Isuzu i-280, among others.

Common Applications and Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by chain vibration
• Helps avoid premature wear of timing components
• Supports proper valve timing for engine efficiency
• Addresses issues related to worn or damaged chain guides

Installation Notes and Tips

Installation of the Cloyes 9-5506 timing chain guide requires careful alignment with the engine’s timing chain system. Ensure the mounting holes align correctly with the engine block using the included bracket. The guide is not manually adjustable, so precise positioning during installation is essential. Bolts are not included, so use OEM or equivalent fasteners matching the specified mounting hole diameters of 0.25" and 0.37". It is recommended to inspect the timing chain and related components for wear during installation.

Quality Assurance and Warranty

Cloyes manufactures the 9-5506 timing chain guide to meet or exceed OEM specifications for durability and fitment. The use of nylon and aluminum materials ensures resistance to heat and mechanical stress. While specific warranty details may vary, Cloyes products typically come with a limited warranty against defects in material and workmanship, providing confidence in long-term reliability.
